Notifier | FSC-851-RC

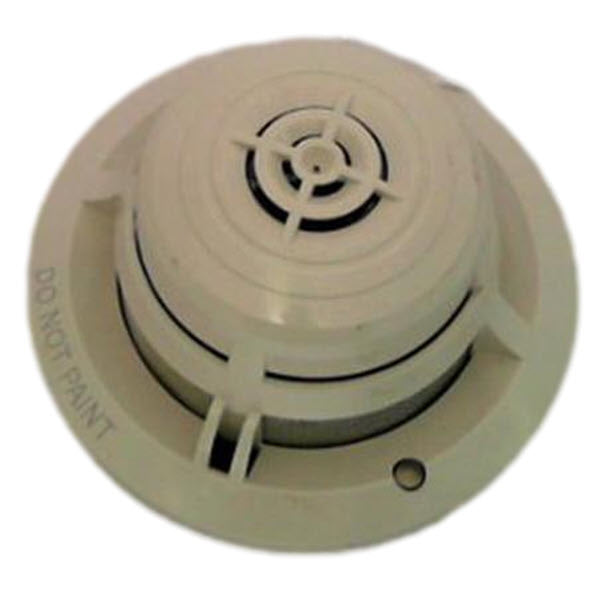

Notifier FSC-851-RC IntelliQuad™ Advanced Multi-Criteria Detector

The Notifier FSC-851- RC is an intelligent, addressable detector that integrates four distinct sensing elements—photoelectric smoke, carbon monoxide (CO), infrared (IR), and thermal detection—to provide comprehensive fire monitoring. This multi-criteria approach enhances detection accuracy while minimizing false alarms, making it suitable for various commercial applications.

Key Features:

• Quad-Sensor Technology: Combines photoelectric smoke detection, electrochemical CO sensing, IR sensing, and thermal detection to monitor all major fire signatures.

• Advanced Algorithms: Utilizes sophisticated algorithms to interpret sensor data, dynamically adjusting sensitivity to respond promptly to real fire conditions while reducing nuisance alarms.

• Six Sensitivity Levels: Offers programmable sensitivity settings to accommodate different environmental requirements.

Specifications:

• Operating Voltage Range: 15 to 32 VDC

• Operating Temperature Range: 32°F to 100°F (0°C to 38°C)

• Dimensions: 2.7 inches (69 mm) height; 6.0 inches (155 mm) diameter when installed in a B710LP base

Compatibility:

The FSC-851 is designed for use with Notifier’s ONYX series fire alarm control panels, ensuring seamless integration and reliable performance.
