Firelite LCD-80F

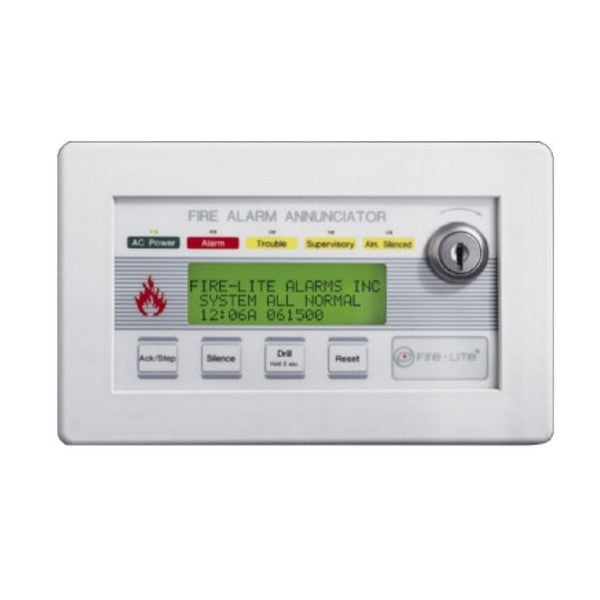

The Fire-Lite LCD-80F is a compact, 80-character backlit LCD remote fire annunciator designed for integration with Fire-Lite® fire alarm control panels (FACPs). It provides a clear display of system status and includes control switches for remote management of critical functions.

Key Features:

• 80-Character Backlit LCD: Mimics all display information from the host panel, including device type identifiers, individual point alarms, troubles, supervisory signals, zones, and custom alpha labels.

• Control Switches: Equipped with switches for system acknowledge, signal silence, drill, and reset, all operable via an enable key.

• System Status LEDs: Indicates power, alarm, trouble, supervisory, and alarm silenced conditions.

• Time and Date Display: Features a dedicated field for time and date information.

• Connectivity: Supports up to 32 annunciators per FACP, connected via an EIA-485 terminal port, with no programming required.

• Power Options: Can be powered from the host FACP or by a remote 24V DC power supply.

• Mounting Options: Designed for semi-flush mounting to a 2.188” (5.556 cm) minimum deep, three-gang electrical box or surface mounting using the SBB-3 surface backbox.
