Siemens (Pyro) CH-MC-R-RC

RECON-Chime-Strobe Multi-Cd Red

Vendor: Siemens (Pyro)

Type: Notification > Chime-Strobe

SKU: PR-N2C2-1594-RC

$130.16

Shipping calculated at checkout.

Out of stock; call for lead time

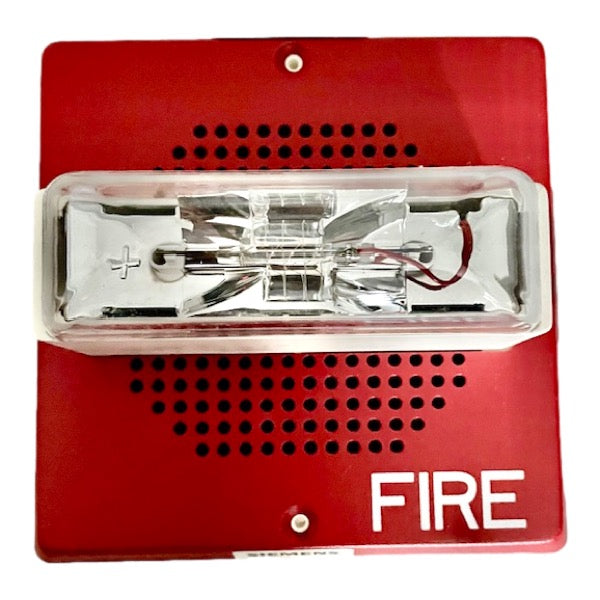

Siemens (Pyro) CH‑MC‑R Chime‑Strobe Multi‑Candela (Wall‑Mount, Red)

The Siemens CH‑MC‑R is a wall‑mounted chime‑strobe appliance in red, combining audible chime signaling with a multi‑candela strobe. Designed for notification use in commercial and institutional fire alarm systems, it offers flexibility in visual intensity and reliable audible alerts.

Key Features:

• Multi‑Candela Settings: Field‑selectable candela options (15, 30, 75, 110 cd) allow matching strobe brightness to room size and visibility requirements.

• Chime & Tone Variation: Provides selectable chime operation with tone and volume control; can operate in single‑stroke or vibrating chime modes.

• Strobe Flash Rate & Design: Features a strobe flash rate of one flash per second, using a rugged Lexan® lens over a low‑current xenon tube.

• Audible Sound Output: Peak sound output around 83 dBA (anechoic) at 10 ft; adjustable frequency range roughly 800–1200 Hz.

• Wire Gauge Compatibility: In/Out screw terminals accept #12 to #18 AWG wiring for ease of installation.
