Potter Electric Signal PAD100-MIM

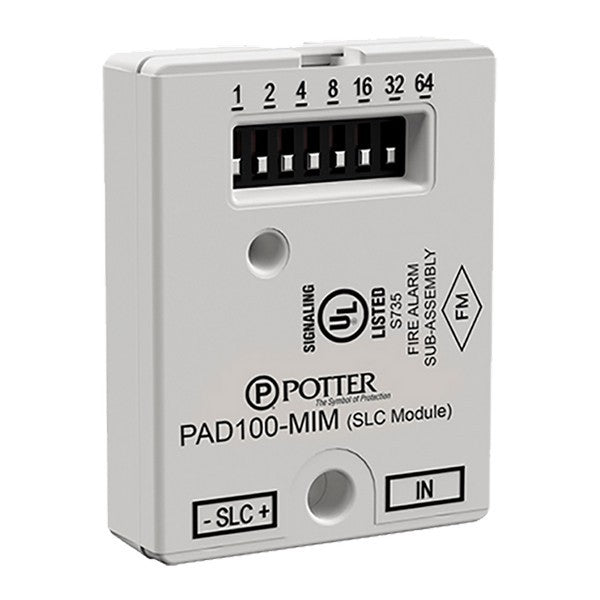

Potter PAD100-MIM Micro Input Module

The Potter PAD100‑MIM is a compact addressable single-input module used to monitor the status of a normally open dry-contact initiating device, such as a pull station, within Potter IPA and AFC/ARC series fire alarm control systems. Enclosed in a plastic housing to protect against shorts and ground faults, it mounts easily using a single screw behind the device being monitored.

Key Features:

• Contact Monitoring: Supports one Class B dry-contact input—for pull stations, supervisory switches, etc.

• Compact Housing: Enclosed in a small plastic case (1.75″ × 1.36″ × 0.43″), ideal for mounting in standard single-gang electrical boxes.

• Status Indicator: LED flashes slowly during polling; flashes rapidly when the contact closes, indicating activation.

• Addressable SLC Support: Compatible with SLC Class A, Class X, and Class B wiring; supports up to 127 modules per loop.

• Low Power Draw: Consumes up to 200 µA in standby or alarm state, minimizing loop load. ()

• Supervision and Safety: Comes with a 5.1 kΩ end-of-line resistor and is UUKL-listed for smoke control.

• Installation-Friendly: Includes 6″ pigtails for wiring and mounts directly in standard 2½″ deep electrical boxes.
