Potter Electric Signal PAD100-SIM

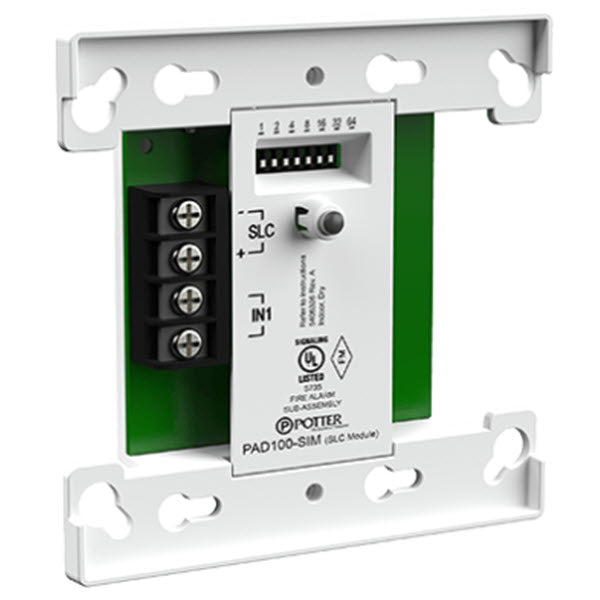

Potter PAD100-SIM Single Input Module

The Potter PAD100‑SIM is an addressable single-input module that monitors one Class B dry-contact circuit using a single SLC loop address. It mounts cleanly in standard 4″ square or double-gang boxes and offers dependable detection for devices such as supervisory switches, waterflow switches, or conventional pull stations.

Key Features:

• Single Class B Input: Monitors one dry-contact input circuit, ideal for supervisory or initiating devices.

• Addressable SLC Compatibility: Occupies one loop address and supports SLC Class A, X, or B wiring configurations.

• Status LED: Built-in red LED flashes slowly during normal polling and rapidly when activated.

• Mounting Options: Fits into standard 4″ square or double-gang electrical boxes with accessible wiring terminals for 12–22 AWG.

• Low Power Draw: Typically draws ≤ 240 µA standby and alarm on the SLC loop.

• Operating Range: Rated for 24 VDC operation in temperatures from 32 °F to 120 °F and 0–93% non-condensing humidity.

• High Loop Capacity: Supports up to 127 modules per SLC loop.
