Edwards | SIGA-CT1HT

Edwards | SIGA-CT1HT

Module Single Input Single Circuit Input

SKU ES-F1P1-1423
$59.99
Availability: Out of stock call for lead time

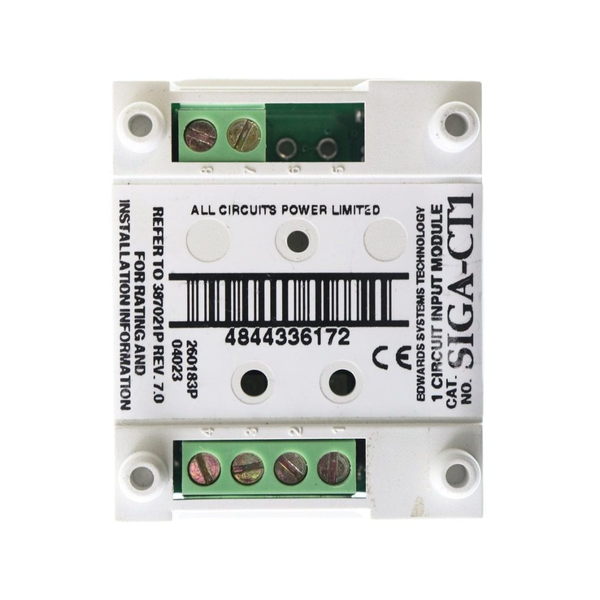

SIGA-CT1 Single Input Module

The SIGA-CT1 Single Input Module is an intelligent analog addressable device used to connect one or two Class B normally-open Alarm, Supervisory, or Monitor type dry contact Initiating Device Circuits (IDC).

Standard Features

  • Multiple Applications: This module offers versatility, including Alarm, Alarm with delayed latching (retard) for waterflow applications, Supervisory, and Monitor functions. The installer selects one of four "personality codes" to be downloaded to the module via the loop controller.

  • High Temperature Rating: The SIGA-CT1HT version is suitable for high-temperature environments, making it ideal for attic installation and monitoring high-temperature heat detectors.

  • Installation Options: It is available in plug-in (UIO) or standard 1-gang mount versions. UIO versions are convenient for quick installations involving multiple modules, while the 1-gang mount version is suitable for remote locations requiring a single module.

  • Automatic Device Mapping: Signature modules communicate their circuit locations concerning other Signature devices on the wire loop to the loop controller.

  • Electronic Addressing: Programmable addresses are downloaded electronically from the loop controller, PC, or the SIGA-PRO Signature Program/Service Tool, eliminating the need for switches or dials.

  • Ground Fault Detection: The module detects ground faults down to the device level.
