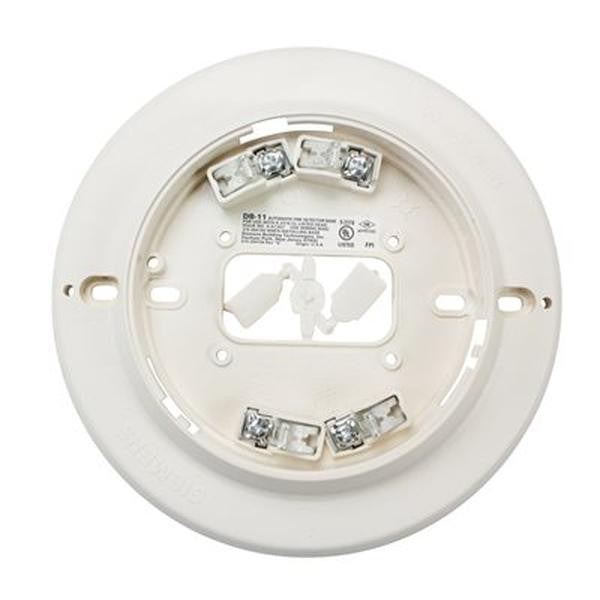

Siemens (Pyro) | DB-11-RC

Siemens Detector Bases: Versatile and Reliable

The Siemens DB-11 detector base series offers compatibility and flexibility for both conventional and addressable detectors. Here are the key features:

Compatibility:

• Compatible with Model 'H', "11", and "121" series of conventional detectors.
• Compatible with addressable Model 'H' series, Models FDO421, FDOT421, FDOOT441, FDOOTC441, and FDT421 intelligent devices.
• Backwards compatibility with Siemens Model 'H'-series intelligent detectors.


Mounting Options:

• Models DB-11 and DB-11E mount on a 4-inch square, octagon, or single-gang electrical box.
• Model DB-11 includes plugs to cover the outer-mounting screw holes.

Product Overview:

• Low-profile, surface-mounting bases designed for Siemens - Fire Safety conventional and addressable detectors.
• Provides a relay output for signaling other devices.


Additional Features:

• Screw-clamp contacts for electrical connections.
• Self-wiping contacts for enhanced reliability.
• Compatible with the optional Model LK11 detector locking kit to prevent unauthorized removal of the detector head.

Specifications:

• UL 268 Listed, ULC-S529 Listed.
• FM, CSFM, and NYC Fire Department Approved.

These Siemens detector bases offer a reliable and versatile solution for your fire safety needs, ensuring compatibility with a wide range of detectors and systems.
