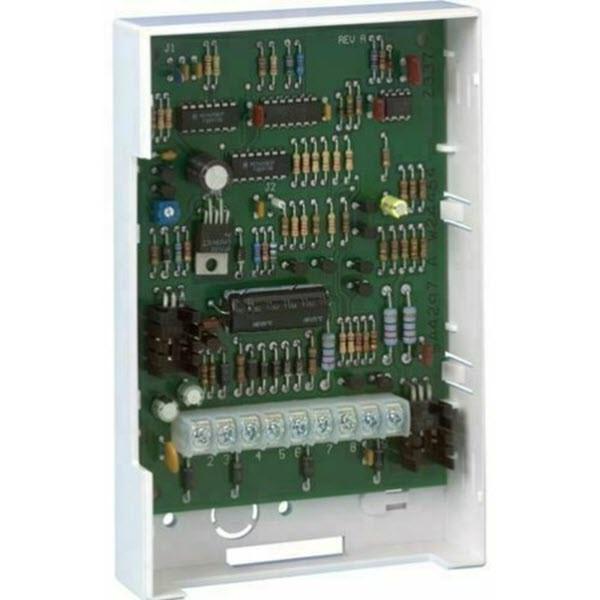

Ademco/Honeywell Security 4297

The Honeywell 4297 is a V-Plex polling loop isolation and extension module for Ademco fire alarm control panels that expands addressable device capacity by receiving control panel input signals and retransmitting boosted copies via an isolated extension loop. The module provides full loop supervision with automatic fault reporting, extending total system wiring capability from approximately 4,000 feet to 8,000 feet without requiring additional control panel hardware.

Key Features

• V-Plex loop isolation and extension for addressable fire alarm systems
• Fully supervised with automatic power and loop fault detection
• Supports up to eight modules in parallel for multiple extension loops
• 128mA maximum extension loop current output per wire run
• Expandable system wiring from 4,000 ft to 8,000 ft per installation
• Compatible with Ademco V-Plex polling loop panels

Technical Specifications

• Polling Loop Voltage: 8–11 VDC
• Input Power: 12 VDC, 180 mA (400 mA when shorted)
• Extension Loop Current: Maximum 128 mA
• Wire Gauge: 14–22 AWG only
• Maximum Line Impedance: 20Ω
• Input Connection: Via control panel V-Plex loop; extension loop output to supervised field devices
• Mounting: UL Listed enclosure required (installations per UL standards)

Certifications

• UL Listed for fire and burglary installation
• FCC/IC compliant
• Requires UL 864/UL 1481 regulated power supply for external power sources
