Ademco/Honeywell Security 5140MPS-1

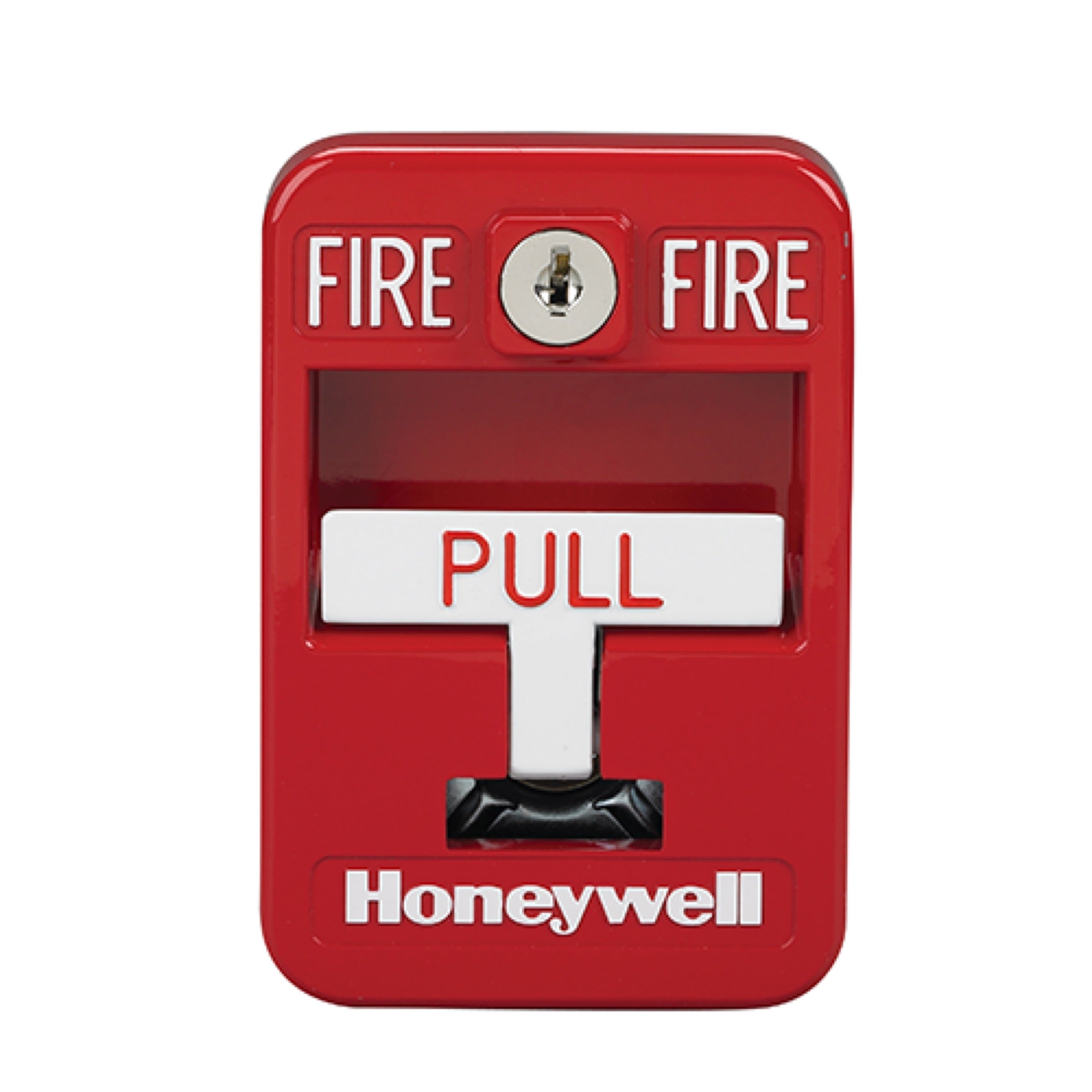

The Honeywell 5140MPS-1 is a non-coded single-action manual fire alarm pull station with die-cast aluminum-alloy housing designed for ADA-compliant building integration in UL Listed fire alarm systems. The device features gold-plated SPST contacts for reliable activation and includes two break tubes for alarm signaling, with key-lock reset for authorized personnel control.

Key Features

• Non-coded single-action pull mechanism for immediate alarm activation
• Die-cast aluminum-alloy housing with red finish
• ADA compliant mounting heights (less than 48" for front access, less than 54" for side access)
• Gold-plated SPST normally-open contacts for reliable signal transmission
• Includes two alarm deterrent break tubes for visual/audible feedback
• Key-lock reset mechanism for controlled reset by authorized personnel

Technical Specifications

• Housing: Die-cast aluminum-alloy with red finish
• Dimensions: 4.75"H x 3.12"W x 2"D
• Contact Type: SPST (Single Pole Single Throw), normally open
• Electrical Rating: 120 VAC
• Installation: Surface mounted with optional backbox or flush mounted on standard single-gang switch box
• Terminal Options: Terminal block or wire leads for secure terminations
• Break Tubes: Two included for operational feedback

Certifications

• UL Listed for fire alarm installations
• ADA Compliant for accessibility in commercial buildings
