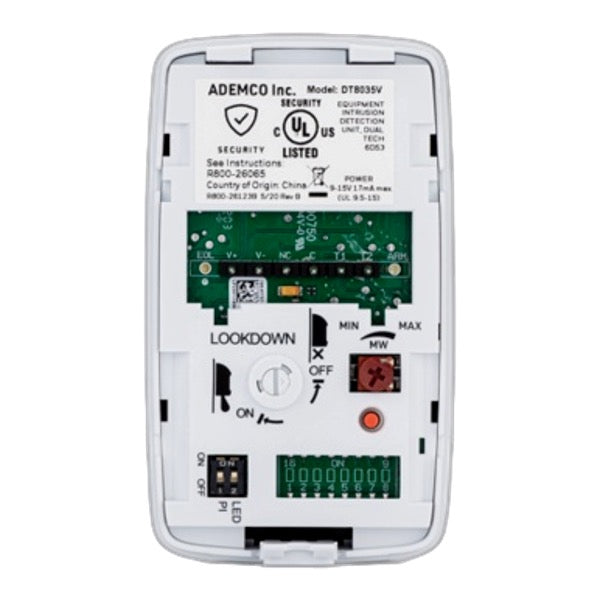

Ademco/Honeywell Security DT8035V

The Honeywell DT8035V is a hardwired dual-technology PIR motion detector combining infrared and microwave sensing for enhanced false alarm immunity in commercial environments. The detector covers a 40' x 56' detection area and provides pet immunity up to 100 pounds, making it suitable for facilities with animal occupancy or high false alarm risk.

Key Features

• Dual-technology detection: passive infrared (PIR) and microwave sensors
• Coverage area: 40' x 56' with extended range Fresnel optics
• Pet immunity up to 100 lbs for environments with animal occupancy
• Selectable detection patterns with look-down capability for corner mounting
• Cover and wall tamper protection with supervision signals
• Energized alarm relay with 3-second activation duration
• Custom-developed Fresnel lens optics for reliable detection

Technical Specifications

• Detection Range: 40 feet by 56 feet maximum coverage
• Power Requirements: 9.0–15 VDC, 15mA typical, 17mA maximum
• Alarm Relay: Energized Form A contact, 30mA @ 25VDC, maximum 22Ω resistance
• Alarm Duration: 3 seconds
• Tamper Protection: Form A contacts for cover and wall tamper detection
• Dimensions: 3.86"H x 2.24"W x 1.71"D (9.8cm x 5.7cm x 4.35cm)
• Weight: 3.6 oz/102g net
• Housing: White polycarbonate with UV-resistant Fresnel lens

Certifications

• UL Listed for residential and commercial intrusion detection
• 2-year limited manufacturer warranty
