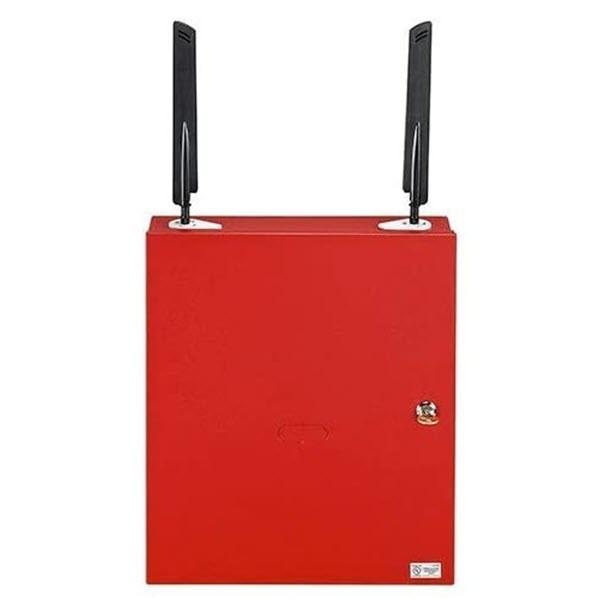

Ademco/Honeywell Security LTE-CFV

The Ademco Honeywell LTE-CFV is a dual-path commercial fire alarm communicator offering secure Contact ID reporting with VISTA-series control panels through Verizon LTE cellular and Ethernet connectivity. The device delivers redundant communication paths—internet primary with cellular backup, cellular only, or internet only—with 256-bit AES encryption protecting all signal transmissions to the AlarmNet Network Control Center.

Key Features

• Dual-path communications: Internet, LTE cellular, or both simultaneously
• Selectable reporting modes: IP primary/cellular backup, IP only, or cellular only
• 256-bit AES encryption for secure signal delivery
• Diagnostic LEDs for real-time signal strength and status indication
• Web-based programming via AlarmNet 360 or local hand-held programmer
• Compatible with VISTA-32FB, VISTA-32FBT, VISTA-128FBP, VISTA-128FBPT, VISTA-250FBP, VISTA-250FBPT panels

Technical Specifications

• Reporting Format: Full Contact ID or ADEMCO High-Speed Reporting
• IP Network: Ethernet 10/100 Base, supports dynamic (DHCP) and static IP addressing
• Cellular Network: Verizon LTE (model LTE-CFV; LTE-CFA variant uses AT&T)
• Programming: Web-based via AlarmNet 360 or local 7720P programmer
• Upload/Download: Compatible with select Honeywell Home panels (requires Compass v1.5.8.54a or higher)

Certifications

• UL 864 10th Edition
• CSFM approved for California applications
• NFPA 72 2010 and 2013 compliance with programmable supervision options
