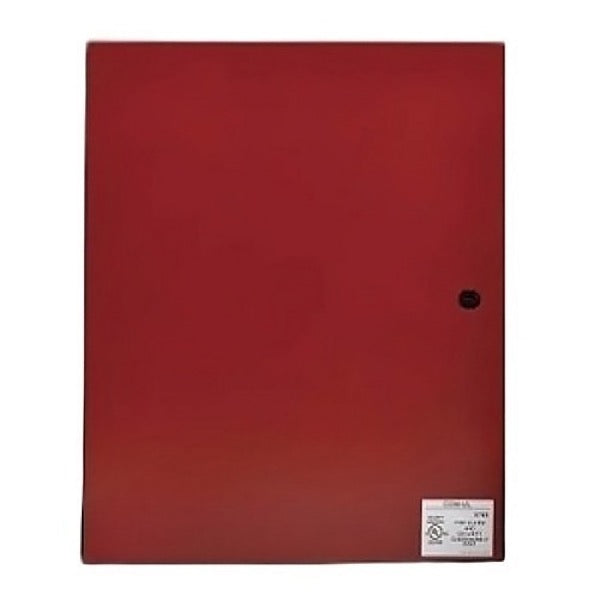

Ademco/Honeywell Security V128FBPT

The Honeywell V128FBPT is a commercial fire and burglary control panel supporting integrated protection for life-safety and security applications with 128 addressable zones across 8 partitions using hardwired, wireless, and V-Plex addressable technologies. The panel integrates AlarmNet cloud connectivity, VISTAKEY access control, and dual on-board NAC outputs rated at 2.3A total for notification device operation.

Key Features

• 128 total zones with 8 partition capability for multi-tenant or multi-area protection
• Supports hardwired, wireless, and V-Plex addressable zone technologies
• 8 standard hardwired zones, expandable to 128 using V-Plex addressable points
• Up to 128 wireless zones (quantity depends on hardwired/V-Plex zone allocation)
• AlarmNet cloud connectivity with Total Connect remote services and monitoring
• Dual on-board NAC outputs: 2.3A total @ 12V for notification devices
• VISTAKEY access control integration for secure user management
• Stores up to 512 events for audit trail documentation
• Supports up to 150 user codes for access control

Technical Specifications

• Zone Capacity: 128 zones maximum across 8 partitions
• Hardwired Zones: 8 standard, expandable via V-Plex modules
• Addressable Technology: V-Plex polling loop support
• Wireless Zones: Up to 128 (dependent on hardwired/addressable allocation)
• NAC Outputs: Dual on-board, 2.3A total @ 12V
• User Codes: Up to 150 programmable codes
• Event Memory: 512 events
• Typical Applications: Medical/professional offices, churches, banks, schools, retail, industrial facilities

Certifications

• UL Listed for fire and burglary control panels
• NFPA 72 compliance for fire alarm systems
• Approved for integrated fire/burglary protection
