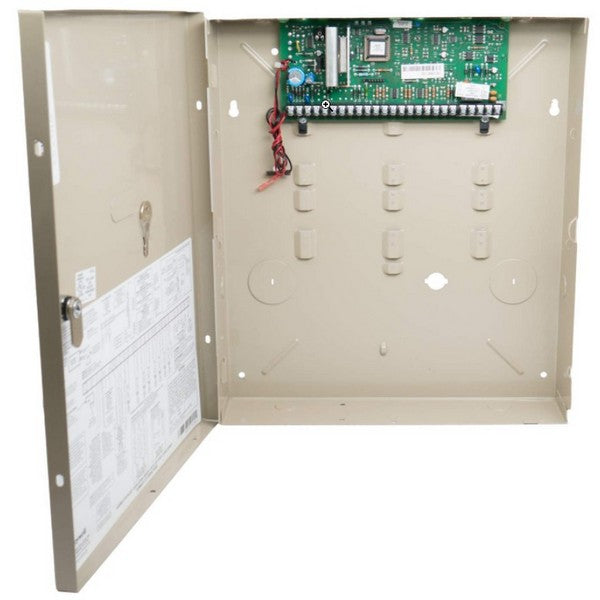

Ademco/Honeywell Security VISTA-20P

The Honeywell VISTA-20P is a hybrid security/fire control panel supporting up to 48 zones with dual partition capability. This panel offers Internet uploading/downloading, graphic keypad support, and configurable fire detection on Zone 1 with support for two-wire smoke detectors and fire verification protocols.

Key Features

• High-capacity control panel with up to 48 zones of protection
• Dual partition support for independent security areas
• Zone 1 configured by default as fire protection zone
• Support for up to 16 two-wire smoke detectors on fire zone
• Fire verification by automatic reset of smoke detectors
• Internet uploading/downloading for remote access and programming
• Compatible with graphic keypads
• Zone expansion via doubling (up to 15 zones) or wireless/wired modules

Technical Specifications

• Zone Capacity: 48 zones maximum
• Built-in Zones: 8 hardwired zones
• Expandable to 15 zones with zone doubling
• Fire Zones: Zone 1 default fire protection
• Smoke Detector Support: Up to 16 two-wire detectors
• Partitions: Dual partition capability
• Communications: Internet Protocol (IP) for uploading/downloading

Certifications

• Hybrid security and fire control panel
• Fire verification capable
• Internet protocol communications
