Altronix AL1012ULXB
Altronix AL1012ULXB
Only 1 left!

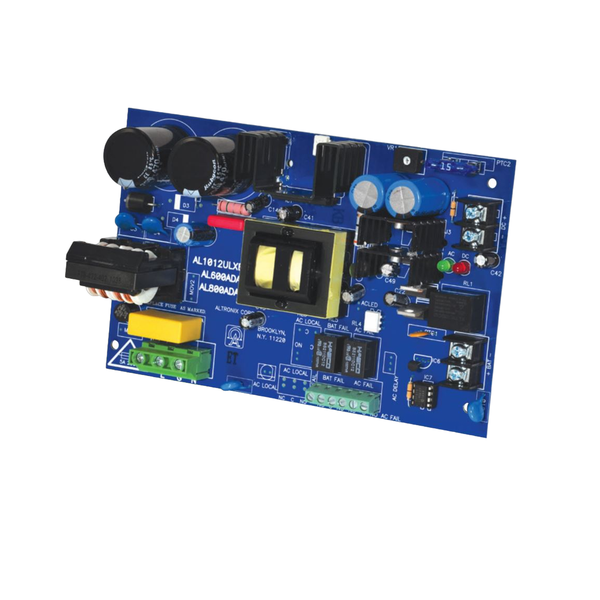

The Altronix AL1012ULXB is a UL Recognized power supply/charger sub-assembly board that converts a 115VAC, 60Hz input into a regulated 12VDC output delivering up to 10A, intended for installers who are building the charger into a larger enclosure or system rather than mounting it in Altronix's own cabinet. Built-in AC-fail, low-battery, and battery-presence monitoring keeps the host system informed of power status at all times.
Key Features
- 12VDC output at 10A from a compact sub-assembly board
- AC fail and battery monitoring supervision
- Compact design for integration into custom security and low-voltage enclosures
Technical Specifications
- Input: 115VAC, 60Hz
- Output: 12VDC @ 10A, non-power-limited
Certifications
- UL Recognized
