Altronix AL1012ULXPD4CB
Altronix AL1012ULXPD4CB
Only 1 left!

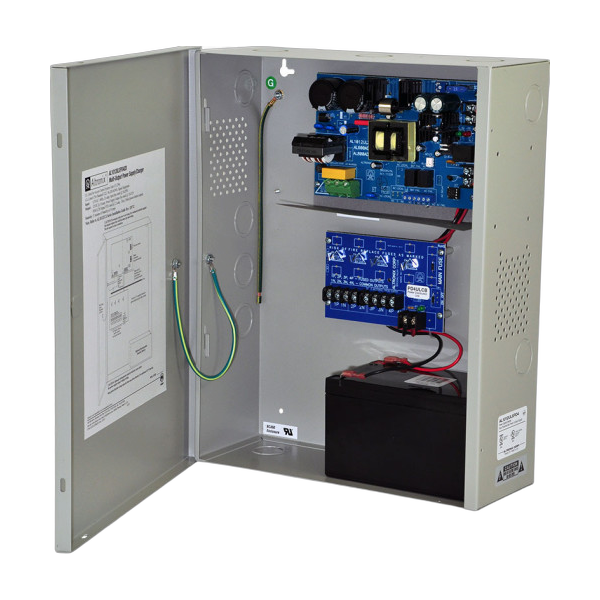

The Altronix AL1012ULXPD4CB is a factory-configured power supply/charger: an AL1012ULX charger board, delivering a regulated 12VDC output at up to 10A from a 115VAC input, shipped with a PD4ULCB power distribution module already installed to split that output into four individually PTC-protected, Class 2 rated outputs. This combination lets an installer power multiple 12VDC devices from one supervised, battery-backed source without adding a separate distribution board in the field.
Key Features
- AL1012ULX charger with PD4ULCB distribution board pre-installed at the factory
- Four Class 2 rated, PTC-protected 12VDC outputs, each individually fused against overload
- AC fail and battery monitoring supervision
- Built-in charger for sealed lead-acid or gel battery backup
Technical Specifications
- Input: 115VAC, 60Hz
- Output: 12VDC, up to 10A total, distributed across four 2.5A PTC-protected outputs
- Non-power-limited main output; power-limited distributed outputs
Certifications
- UL Recognized power supply/charger sub-assembly
