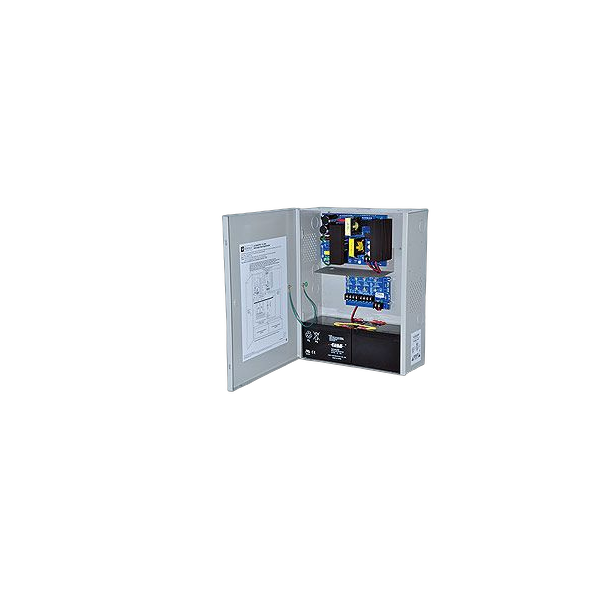

Altronix AL1024ULXPD4

The Altronix AL1024ULXPD4 is a 24VDC regulated power supply and automatic charger that converts standard 115VAC input into four protected direct current outputs for fire alarm and access control systems. Built-in battery supervision and automatic switchover protect against AC outages, while individual fused outputs and thermal overload protection safeguard connected devices from electrical faults.

Key Features

• Four (4) independent fused 24VDC outputs with 3.5A protection per port
• Automatic battery charger with max 3.6A charge current and zero-voltage-drop switchover
• Battery supervision contacts for AC fail, low battery, and battery presence monitoring
• Filtered and electronically regulated output to minimize electrical noise
• Short circuit and thermal overload protection on all outputs
• Wall-mount BC400 enclosure for easy installation
• AC fail and low battery LED indicators for visual status

Technical Specifications

• Input: 115VAC, 60Hz, 4.2A max
• Output: 24VDC regulated, 10A continuous (access control) / 8A continuous (fire alarm)
• Output per channel: Protected by 3.5A/250VAC fuses
• Battery Charging: Built-in charger, max 3.6A charge current
• Operating Temperature: 0 to 49°C (32 to 120°F)
• Dimensions: 15.5"H x 12"W x 4.5"D
• Thermal Output: 122.84 BTU/Hr

Certifications

• UL Listed power supply
• NFPA 72 compliant
