Altronix AL175ULX
Altronix AL175ULX
12/24VDC 175Aul Ps/Cgr Lg Cb
Regular price
$201.99
Sale price
$201.99
Regular price
Shipping calculated at checkout.
Only 4 left!

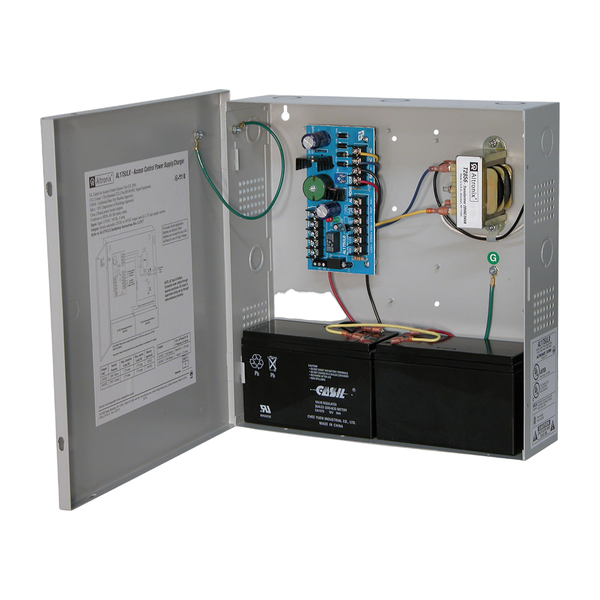

The Altronix AL175ULX converts a 115VAC, 60Hz input into two individually protected Class 2 power-limited outputs, a switched fail-safe/fail-secure lock output and an unswitched auxiliary output, both selectable at 12VDC or 24VDC and rated at 1.75A continuous. Housed in a compact BC300 enclosure, it switches instantaneously to standby battery on AC loss and includes a supervised fire alarm disconnect for the lock output.
Key Features
- Two Class 2 rated outputs: switched lock output and unswitched auxiliary output
- Selectable 12VDC or 24VDC output at 1.75A continuous
- Instantaneous failover to sealed lead-acid or gel battery on AC loss
- Supervised latching or non-latching fire alarm disconnect
Technical Specifications
- Input: 115VAC, 60Hz
- Individually protected outputs with short circuit and thermal overload protection
- AC failure Form C contacts
Certifications
- UL Listed
