Altronix AL300ULPD4

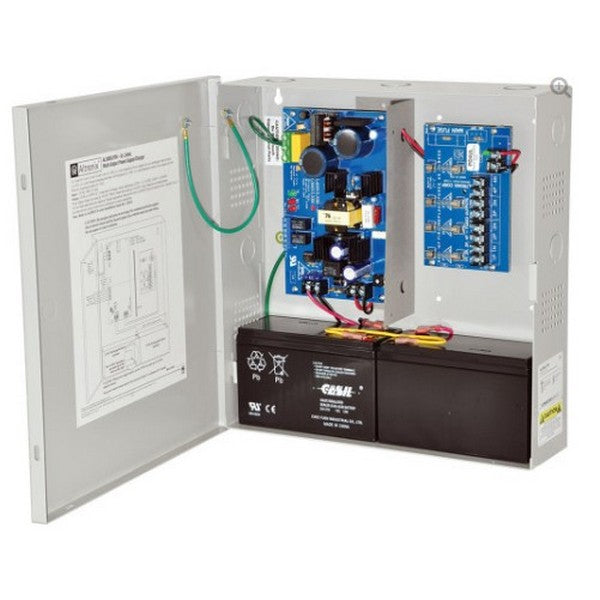

The Altronix AL300ULPD4 is a multi-output power supply and charger that converts 115VAC/60Hz input into four independent 12VDC or 24VDC Class 2 rated outputs, each delivering 3.5A continuous current. Each output is filtered and electronically regulated with individual short-circuit and thermal overload protection, while the built-in charger accommodates sealed lead-acid or gel-type backup batteries with automatic switchover and zero voltage drop when AC power fails. AC fail, low battery, and battery presence supervision provide monitoring via Form C contacts for integration with security panels.

Key Features

• Four independent regulated Class 2 outputs: 12VDC or 24VDC @ 3.5A each
• Electronic regulation with short-circuit and thermal protection on each output
• Built-in battery charger for sealed lead-acid or gel-type batteries (0.7A max charge)
• Automatic switchover with zero voltage drop on AC failure
• AC fail, low battery, and battery presence supervision contacts (Form C)
• LED indicators for AC input, DC output, and battery status

Technical Specifications

• Input: 115VAC, 60Hz, 3.5A max at 250V fuse
• Output: Four @ 3.5A each (12VDC or 24VDC selectable per circuit)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Humidity: 85% +/- 5% non-condensing
• Dimensions: Standard BC300 enclosure format

Certifications

• UL Listed power supply for fire alarm and security systems
• Class 2 Power Limited per NEC
