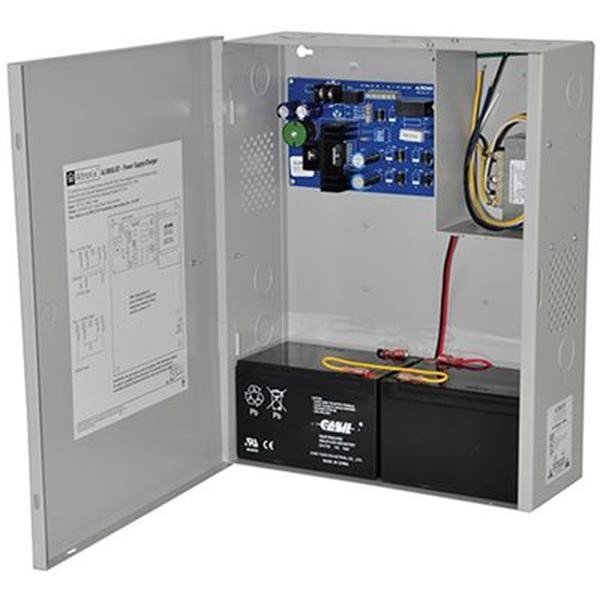

Altronix AL300ULXD

The Altronix AL300ULXD is a 12/24VDC Class 2 rated power supply and charger designed for fire alarm and security system installations. With its 2.5-amp output, built-in battery charger, AC fail supervision, and thermal overload protection, it provides reliable backup power in a compact wall-mount enclosure.

Key Features

• Single 12VDC or 24VDC Class 2 output at 2.5A
• Built-in sealed lead acid/gel battery charger with automatic switchover
• Filtered and electronically regulated output
• AC fail and low battery supervision with form C contacts
• Short circuit and thermal overload protection
• AC and DC output LED indicators
• Wall-mount design for indoor installations

Technical Specifications

• DC Output: 12VDC or 24VDC @ 2.5A
• AC Input: 115VAC or 230VAC, 50/60Hz
• Charger Current: 0.6A maximum
• Dimensions: 12.25"W x 15.5"H x 4.5"D
• Weight: 11.7 lbs
• Operating Temperature: 0°C to 49°C
• Supervision: AC fail and low battery detection

Certifications

• Class 2 power-limited output rated
• UL listed power supply
