Altronix AL400ULACM
Altronix AL400ULACM
Only 1 left!

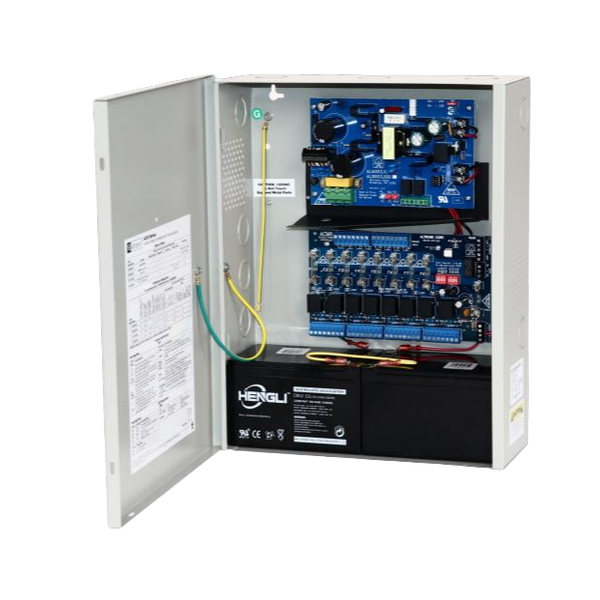

The Altronix AL400ULACM is an access power controller that converts a 115VAC input into eight independently controlled, PTC-protected 12VDC or 24VDC outputs for locking hardware, with a total supply current of 4A at 12VDC or 3A at 24VDC. An integrated FACP interface lets each output be individually configured for fire alarm disconnect, so locks release for egress the moment the fire panel signals an alarm, while supporting both fail-safe and fail-secure devices.
Key Features
- Eight independently controlled, PTC-protected power-limited outputs
- Integrated FACP interface with per-output fire alarm disconnect
- Supports fail-safe and fail-secure locking hardware
- Built-in charger for sealed lead-acid or gel battery backup
Technical Specifications
- Output: 12VDC @ 4A or 24VDC @ 3A total supply current, selectable
- AC fail, low battery, and battery presence supervision via Form C contacts
