Altronix AL600ULACMCB
Altronix AL600ULACMCB
Out of stock; call for lead time

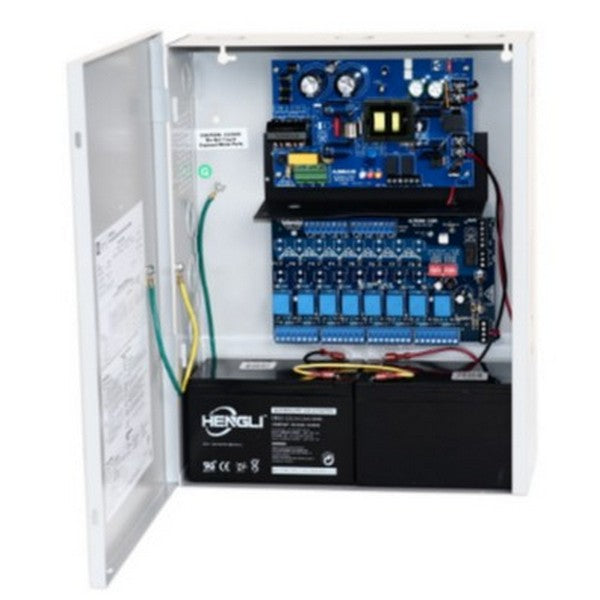

The Altronix AL600ULACMCB is a UL-listed access power controller with eight independently controlled 12/24 VDC relay outputs providing fail-safe and fail-secure switching for access control devices. The power supply features 6-ampere continuous output capacity with PTC auto-reset protection on each relay output, Fire Alarm Control Panel (FACP) interface support, and integrated battery charging for emergency backup power systems.
Key Features
- Eight individually controlled relay output circuits
- Selectable 12 or 24 VDC operation per output
- 6A continuous total current capacity across outputs
- PTC Class 2 auto-resettable protection per output
- Independent fail-safe or fail-secure configuration per relay
- FACP interface for emergency egress control
- Battery charging for backup power system
- Red BC400 metal enclosure
Technical Specifications
- Input: 115VAC 60Hz, 1.90A @ 110V
- Outputs: Eight +12V or +24V rails, 6A total capacity
- Output Type: Eight PTC Class 2 relay outputs
- Configuration: Individual fail-safe/fail-secure per output
- Battery Charging: Integrated lead-acid charger
- Protection: Short circuit, thermal overload, PTC per output
- Enclosure: BC400 Red metal cabinet
- Dimensions: 15.5"H x 12.2"W x 4.5"D
- Weight: 10.20 lbs
Certifications
- UL Listed access control power supply
- PTC Class 2 protection per output circuit
