Altronix AL600ULPD8CB
Altronix AL600ULPD8CB
Only 1 left!

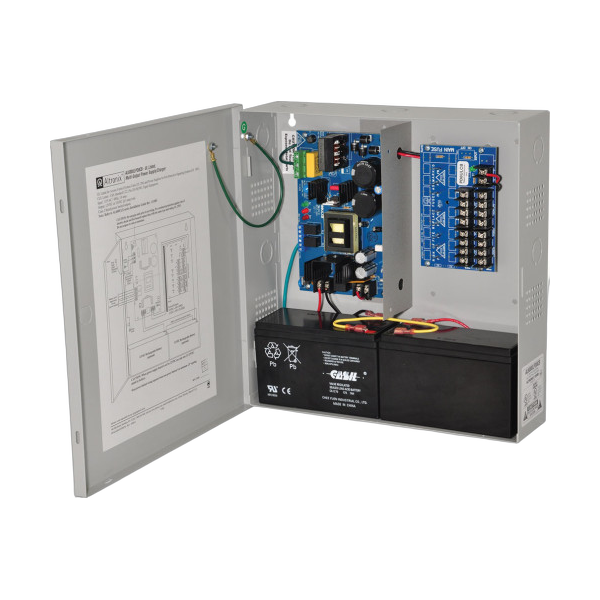

The Altronix AL600ULPD8CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight Class 2 rated, PTC-protected power-limited outputs, selectable at 12VDC or 24VDC with 6A of continuous supply current shared across them. Its built-in charger automatically switches to a standby sealed lead-acid or gel battery on AC failure, and Form C contacts report AC failure, low battery, and battery presence back to the panel.
Key Features
- Eight Class 2 Rated PTC-protected power-limited outputs, each rated at 2.5A
- Selectable 12VDC or 24VDC output at 6A continuous
- Automatic switchover to standby battery with zero voltage drop
- Selectable AC-fail notification delay (30 seconds factory-set, or 6 hours)
Technical Specifications
- Input: 115VAC, 60Hz, 3.5A
- Maximum charge current: 0.7A
- Enclosure: 13.5"H x 13"W x 3.25"D, accommodates two 12VDC/7AH batteries
Certifications
- UL 294 Listed for Access Control System Units
- UL 1481 Listed for Fire Protective Signaling Systems; evaluated to CSA C22.2 No.205-M1983
