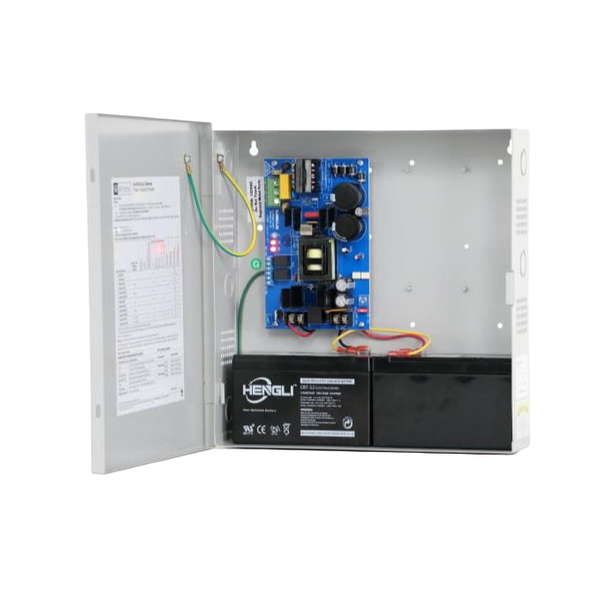

Altronix AL600ULX

The Altronix AL600ULX is a regulated power supply and battery charger that converts 115VAC input into a 12VDC or 24VDC non-power-limited output with integrated sealed lead acid battery charging and automatic switchover on AC failure. Electronic filtering and voltage regulation ensure stable power delivery to fire alarm control panels and supervised devices, with integrated AC fail and low battery supervision.

Key Features

• Single selectable 12VDC or 24VDC output at 6A continuous maximum
• Built-in sealed lead acid or gel battery charger with automatic switchover
• Maximum charge current of 0.7A for fast battery recharge during normal operation
• Zero voltage drop during AC-to-battery switchover for uninterrupted power
• Short circuit and thermal overload protection on output
• AC fail, low battery, and battery presence supervision via form-C contacts
• Filtered and electronically regulated output for clean power delivery

Technical Specifications

• Input: 115VAC, 60Hz, 3.5A maximum @ 402.5VA system requirement
• Output: 12VDC or 24VDC @ 6A continuous maximum
• Battery Charging Current: 0.7A maximum for sealed lead acid types
• Voltage Output Range: 12/24VDC selectable, electronically regulated
• Supervision Contacts: Form-C dry relays for AC fail, low battery, battery presence
• Operating Temperature: 0° to 49°C (32° to 120°F)
• Storage Temperature: -20° to 70°C (-4° to 158°F)
• Load Protection: Short circuit and thermal overload protection

Certifications

• UL Recognized power supply for fire alarm and security applications
