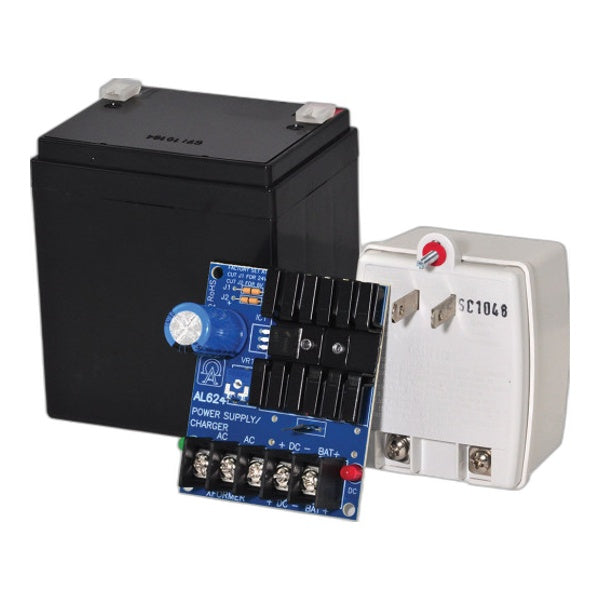

Altronix AL624

The Altronix AL624 is a compact linear power supply and battery charger converting 16–24 VAC input into selectable 6VDC, 12VDC, or 24VDC output at 1.2A with integrated lead-acid battery charging capability. The power supply features electronically regulated and filtered output with short-circuit and thermal overload protection for reliable operation in access control, CCTV, and security system installations.

Key Features

• Switch-selectable output: 6VDC or 12VDC @ 1.2A, or 24VDC @ 0.75A
• Input voltage: 16–24 VAC for flexible AC installation
• Integrated charger for sealed lead-acid and gel-type batteries
• Automatic switchover to standby battery when AC fails
• Short-circuit and thermal overload protection
• AC input and DC output LED indicators for system status
• Filtered and electronically regulated output voltage

Technical Specifications

• Input Voltage: 16–24 VAC, 50/60 Hz
• Output Voltage: 6VDC, 12VDC, or 24VDC selectable
• Output Current: 1.2A @ 6/12V, 0.75A @ 24V
• Battery Charging: Automatic for sealed lead-acid or gel batteries
• Ripple/Noise: < 50mV RMS
• Temperature Range: 0°C to 50°C operating
• Enclosure: Compact desktop or wall-mount housing
• Applications: Access control, CCTV, security, emergency lighting backup

Certifications

• Altronix factory certified power supply
• Meets UL requirements for access control systems
