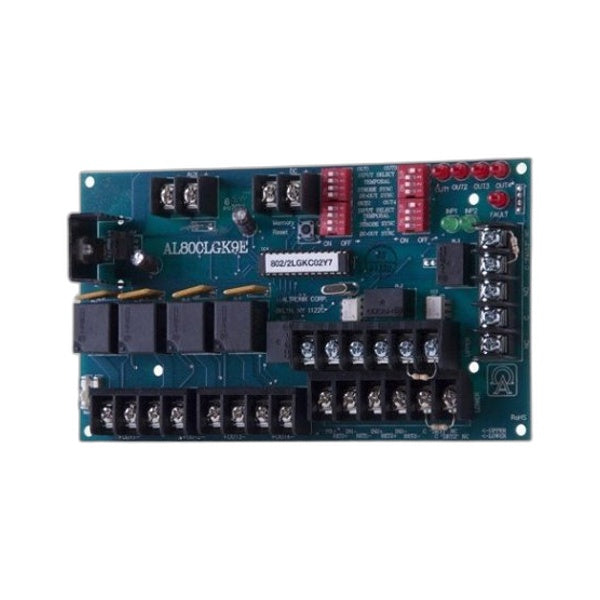

Altronix AL800LGK9E

The Altronix AL800LGK9E is a replacement logic board for use in the AL802-WAL NAC and AL1002-WAL Power Extender enclosures, providing advanced signal processing and circuit management for life safety and security system applications. This board manages multiple initiating device circuits, notification appliance circuits, and auxiliary outputs with full Class A/Class B configuration support for redundant wiring in critical fire alarm and security installations.

Key Features

• Advanced logic board for NAC Power Extender control
• Two (2) Class A or Class B FACP initiating device circuit inputs
• Two (2) normally-closed dry contact trigger inputs
• Two (2) Class A or four (4) Class B notification appliance circuit outputs
• Dual Class B outputs can be paralleled for increased power capacity
• One (1) auxiliary power output with 1A supply current
• Battery backup support for auxiliary power and circuit supervision
• Suitable for CCTV, Fire Alarm, VOIP, and security applications

Technical Specifications

• Initiating Device Circuits: 2 (Class A or Class B configurable)
• Trigger Inputs: 2 NC dry contact
• Notification Circuits: 2 Class A or 4 Class B (configurable)
• Auxiliary Power Output: 1A with battery backup option
• Application: NAC Power Extender control board
• Compatible Enclosures: AL802-WAL, AL1002-WAL
• System Integration: Fire alarm, security, VOIP monitoring

Certifications

• UL-recognized fire alarm system component
• Meets fire protection and security system standards
