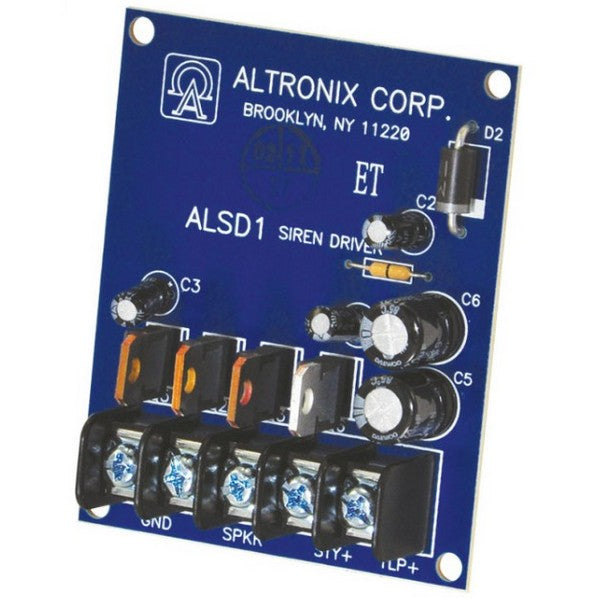

Altronix ALSD1
Altronix ALSD1
Out of stock; call for lead time
The Altronix ALSD1 is a high-output, very low current draw dual-channel siren driver designed for use with alarm panels having limited current capability. Operating at 6VDC or 12VDC, it delivers 113-120dB sound output through two independent channels, supporting both steady and yelp operation modes with flexible parallel or series speaker wiring configurations. Its compact form factor and minimal power consumption make it ideal for integrated fire alarm and security systems requiring remote audible notification.
Key Features
- High output: 113-120dB dual-channel siren driver
- 6VDC or 12VDC operation - low current draw (0.5A to 1.8A)
- Two-channel operation: steady or yelp mode selectable
- Flexible speaker wiring: parallel or series configuration
- Very low power consumption for integration with current-limited panels
- Compact plastic enclosure
Technical Specifications
- Input Voltage: 6VDC or 12VDC selectable
- Current Draw: 0.5A to 1.8A (varies with speaker resistance and supply voltage)
- Sound Output: 113-120dB
- Channels: Two independent channels
- Operation Modes: Steady or Yelp
- Dimensions: 2.75"W × 1.1"L × 1.75"H
- Weight: 0.08 lbs
- Operating Temperature: 25°C to 55°C (-13°F to 131°F)
Certifications
- UL Listed siren driver for fire alarm systems
- RoHS Compliant
