Altronix FIRESWITCH108
Altronix FIRESWITCH108
Only 4 left!

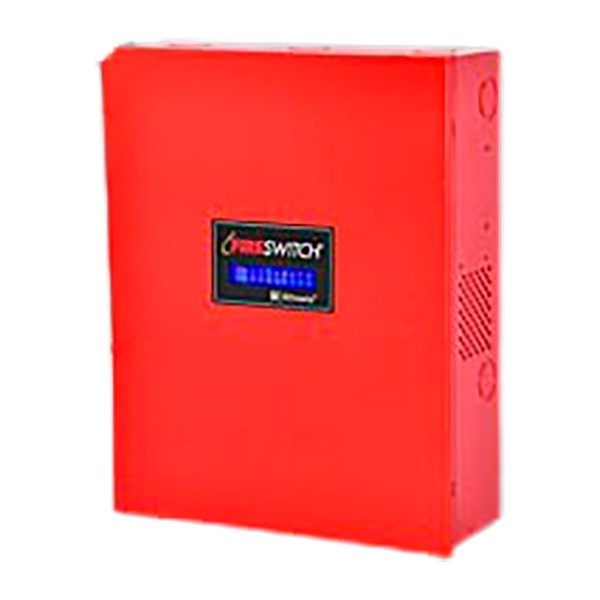

The Altronix FireSwitch108 is a UL 864-listed managed NAC power extender with on-board LCD display and Ethernet management capabilities. Designed to interface with 12VDC or 24VDC fire alarm control panels, it delivers eight programmable 24VDC notification appliance circuits, each individually configurable as Class B NACs, Class A NACs, or auxiliary power outputs at up to 2.5A per circuit. With programmable CO Temporal Code 4 compatibility with Gentex, Potter, and System Sensor signals, sealed lead-acid battery backup, and network synchronization of up to twelve units, the FireSwitch108 provides ADA-compliant NAC expansion for integrated fire alarm systems.
Key Features
- Eight programmable 24VDC notification appliance circuits
- Individually configurable as Class B NACs, Class A NACs, or auxiliary power
- Programmable LCD display and Ethernet management interface
- Programmable CO Temporal Code 4 generation
- Thermal and short-circuit protection with auto-reset
- Support for synchronizing up to twelve FireSwitch108 units
- Sealed lead-acid or gel-type backup battery support
Technical Specifications
- Input: 12VDC or 24VDC fire alarm control panel
- Outputs: Eight programmable 24VDC @ up to 2.5A each
- Management: On-board LCD display, Ethernet port for LINQ dashboard integration
- Signal Compatibility: Gentex, Potter, System Sensor CO Temporal Code 4
- UL 864 Listed for fire alarm NAC power expansion
Certifications
- UL 864 Listed managed NAC power extender
- ADA compliant notification appliance circuit expansion
