Condition: New

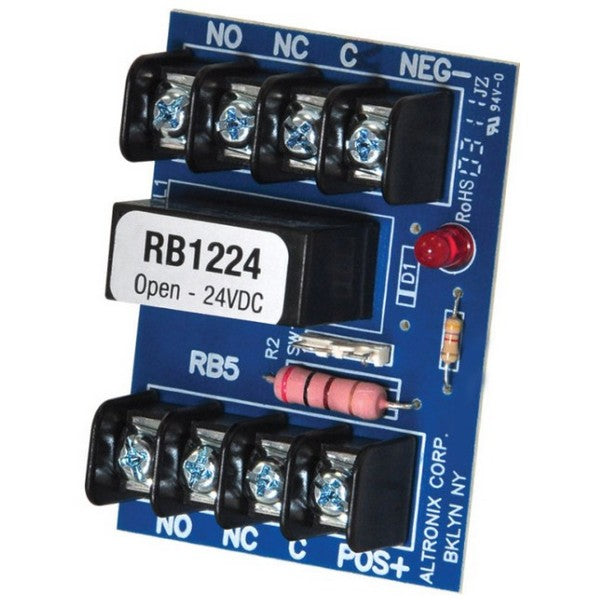

Altronix RB1224
Altronix RB1224
Module Relay 12V/24 DPDT 5 Amp
Regular price
$15.99
Sale price
$15.99
Regular price
Shipping calculated at checkout.
In stock!
The Altronix RB1224 is a versatile DPDT (Double Pole Double Throw) relay module designed for security, fire, and access control systems. With selectable 12VDC or 24VDC operation and heavy-duty contacts rated at 5A, it supports dry contact switching, line seizure, and polarity reversal applications. The module mounts via included snap track and features screw terminals accepting wire up to 12 AWG for quick field installation.
Key Features
- DPDT relay configuration for flexible switching applications
- Selectable 12VDC or 24VDC operation
- Heavy-duty contacts rated 5A at 120VAC or 28VDC
- Snap track mounting with included hardware
- Screw terminals accept wire up to 12 AWG
Technical Specifications
- Input Voltage: 12VDC or 24VDC (selectable)
- Contact Rating: 5A at 120VAC or 28VDC
- Current Draw: 75mA
- Dimensions: 2.75"W × 2"L × 1"H
- Weight: 0.5 lbs
Certifications
- UL Listed for security and fire alarm applications
