Andover I2866-RC

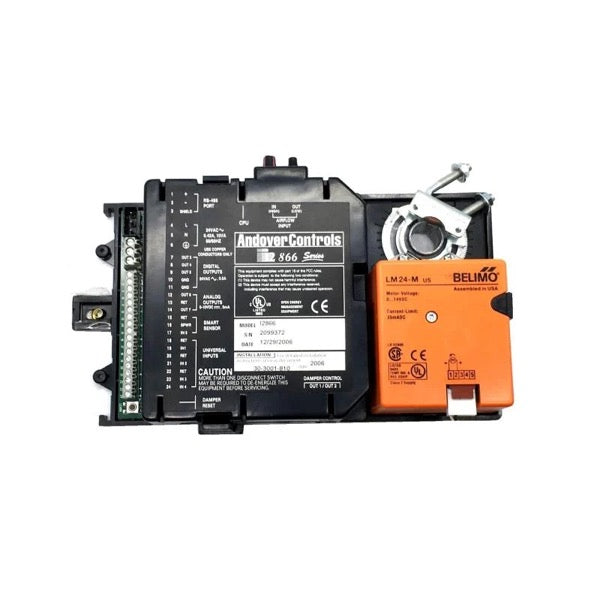

The Andover I2866 is an Infinet II VAV box controller with a built-in Belimo damper actuator, combining the controller and the damper motor into one unit that mounts directly on the VAV box's damper shaft. That eliminates a separate actuator, its mounting hardware, and its wiring, cutting installation time on jobs with many VAV boxes to control. This model adds two analog outputs over the base i2865, extending it to reheat valve or lighting ballast control alongside airflow.

Key Features

• Integrated Belimo actuator mounts straight onto the damper shaft, with a built-in clutch button to disengage the gears during commissioning
• Onboard airflow sensor plus a room sensor input compatible with Andover's Smart Sensor or a standard temperature sensor
• Non-volatile Flash memory retains the operating system and application program through a power loss
• Communicates on the Infinet field bus, compatible with both Continuum CyberStation and Infinity SX 8000 front-ends

Technical Specifications

• Inputs: 4 universal inputs, plus onboard airflow sensor and room sensor input
• Outputs: 3 Form A triac-based outputs, plus 2 analog (0-10 V) outputs
• Power: 24 VAC, +10%/-15%, 50/60 Hz
