Ansul 430525

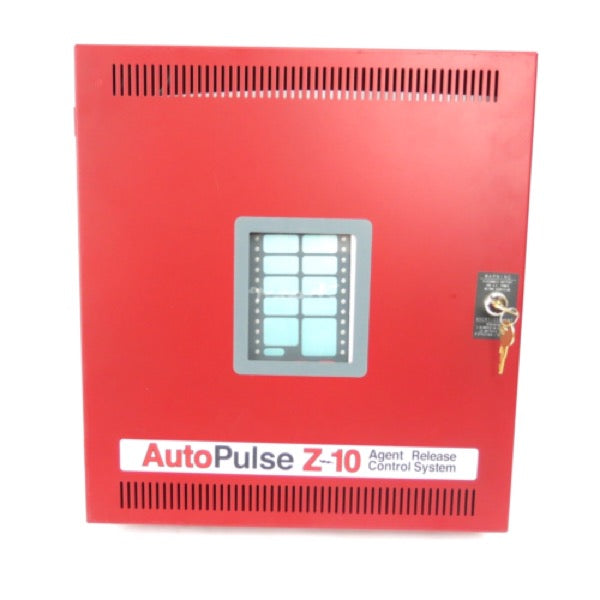

Ansul 430525 AUTOPULSE Z‑10 Agent Release Control Panel (120/240 VAC)

The Ansul 430525 is the model number for the AUTOPULSE Z‑10 Agent Release Control Panel, a conventional fire detection and suppression releasing panel. It manages automatic agent release systems along with alarm signaling and optional sprinkler or deluge system integration.

Key Features:

• Four Initiating Device Circuits (IDCs): Allows zone-based fire detection flexibility or cross‑zone configurations.

• Two Notification Appliance Circuits (NACs): Provide signaling capability via horns or strobes.

• Two Releasing Appliance Circuits (RACs): Supervise and activate suppression agent and electromechanical release devices.

• Two Special Purpose Monitor Inputs (SPMs): Dedicated circuits for manual release and abort switch monitoring.

• Three Auxiliary Relays: Programmable for system status, trouble, or alarm indication purposes.

• Selectable Hazard Operation Modes: Supports single‑ or dual‑hazard releasing, combined agent and sprinkler operation, preaction, and deluge modes.

• Short Circuit RAC Supervision: Designed to monitor and respond to short‑circuit faults on releasing circuits.

• Non‑Volatile History Log: Stores the last 50 events for diagnostics—accessible via the panel’s service port.

• 120/240 VAC Power Input with Battery Charger: Automatically accommodates both voltages and includes standby battery charging capability.
