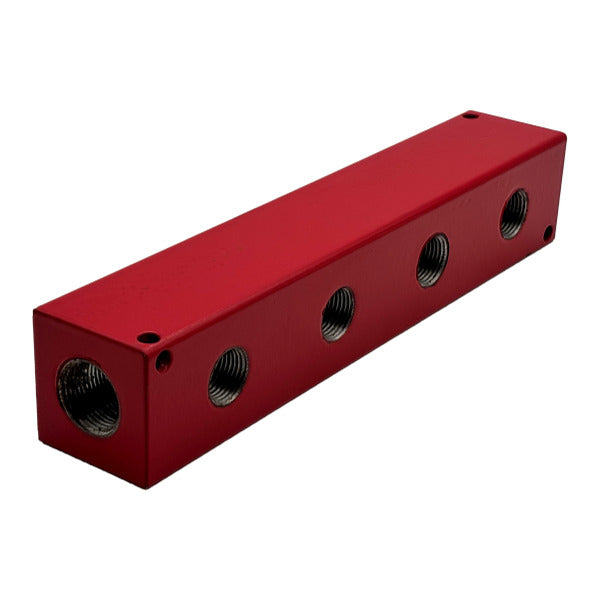

Ansul 438835

4 x 1 Distribution Manifold Block for LVS Systems

Key Features

• 4-outlet distribution manifold block for LVS liquid agent vehicle systems
• Alternative to conventional tees for primary supply line splitting
• Designed for maximum 4 nozzles at 9.5 flow rating
• Four female 1/2 in. NPT outlets
• Compact integrated design reduces system complexity

Technical Specifications

• Component Type: Distribution Manifold Block
• Configuration: 4 x 1 outlet design
• System: Ansul LVS-5, LVS-10, LVS-15, LVS-30
• Outlets: Four female 1/2 in. NPT (1-inch spacing)
• Inlets: 3/4 in. NPT female on both ends
• Length: 10.75 inches (273 mm)
• Material: Ductile iron construction
• Maximum Nozzles: Four 9.5 nozzle equivalents

Certifications

• OEM Ansul component for LVS liquid agent vehicle systems
• Meets LVS system specifications and safety standards
• Suitable for vehicle fire suppression installations
