Apollo 56000-005USA

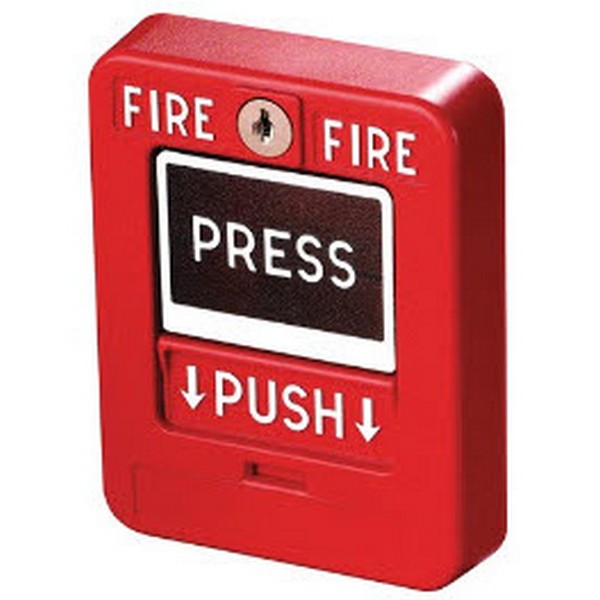

The Apollo 56000-005USA is a Discovery UL-listed addressable dual-action manual pull station designed for Apollo fire alarm systems using XP95 protocol. This station requires both pull and twist actions to activate, preventing false alarms while delivering an alarm signal to the control panel in under 0.2 seconds, with built-in LED visibility through a translucent center panel indicating operation and polling status.

Key Features

• Dual-action design (pull and twist) prevents false alarms from accidental contact
• Addressable device with DIP switch configuration for flexible system integration
• Translucent polycarbonate center panel allows visibility of internal LED for operation confirmation
• Key lock reset mechanism ensures controlled operation and security
• Alarm response time under 0.2 seconds meets critical emergency notification requirements

Technical Specifications

• Protocol: XP95 Discovery addressable
• Supply Voltage: 17–28 V DC; UL listed to operate 20–28 V DC
• Contact Configuration: Addressable relay output
• Operating Temperature Range: 32°F to 100°F (0°C to 37.8°C)
• Housing: Polycarbonate construction, flush or surface mountable
• Mounting: Single-gang work box flush mount or optional back cover surface mount
• Reset: Key lock mechanism for authorized personnel control

Certifications

• UL 38 Listed for manually actuated signaling boxes
• Apollo Discovery XP95 protocol compatible
• Core Protocol compatible addressable station
