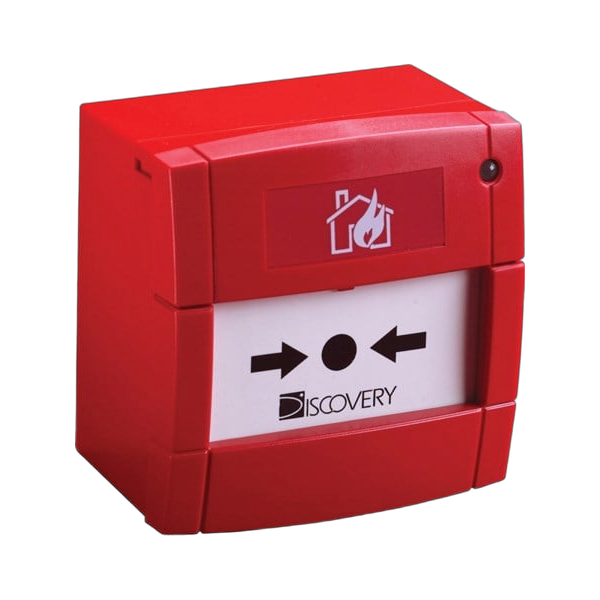

Apollo 58100-970MAR

The Apollo 58100-970MAR is a Discovery Marine manual call point built for shipboard and offshore fire alarm loops, letting crew manually trigger an alarm or extinguishant release from a weatherproof red enclosure. Breaking the frangible element interrupts the Discovery/XP95 loop's normal polling cycle so the control panel registers the activation in under 0.2 seconds, and a continuity link lets installers test the loop wiring during commissioning before the glass element is fitted. It mounts semi-flush or surface in a red IP24D polycarbonate/ABS housing sized for marine control stations.

Key Features

• Interrupts loop polling for sub-0.2-second alarm reporting
• Continuity link allows loop wiring tests before the frangible element is installed
• Semi-flush or surface mounting in red polycarbonate/ABS housing
• Compatible with Apollo Discovery and XP95 addressable loops

Technical Specifications

• Loop Signal: 5-9V peak-to-peak
• Power Draw: 100μA quiescent @ 24V DC, 1mA max surge
• Dimensions: 93mm L x 89mm W x 60mm D
• IP Rating: IP24D; Operating Temp: -20°C to +60°C; Humidity: 0-95% RH

Certifications

• EN 54-11 certified
• DNV GL and MED (Marine Equipment Directive 2014/90/EU) approved
