Apollo HS-100-P
Apollo HS-100-P
Only 1 left!

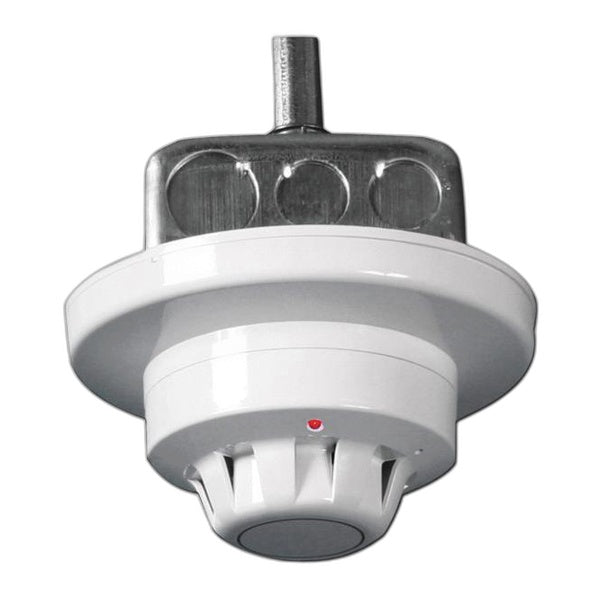

The Apollo HS-100-P is a special application photoelectric plenum duct smoke detector designed for HVAC systems and confined space installations where standard external-mount duct detectors cannot be utilized. The detector operates across a wide air velocity range from 0 to 3,000 feet per minute and supports multiple voltage options for flexible installation in commercial rooftop package units, air shafts, and return air plenums.
Key Features
- Photoelectric duct smoke detector for special HVAC applications
- Wide air velocity range: 0–3,000 feet per minute rated
- Suitable for extremely low or no-flow applications (≤100 ft/min)
- Multiple voltage options: 230V, 115V, or 24V selectable
- Flashing LED visual indicator for alarm status
- Temperature rated: 32–140°F (-0–60°C)
- Humidity rated: 0–85% relative humidity
- Solid white polycarbonate housing for HVAC environment compatibility
Technical Specifications
- Detection Type: Photoelectric (light scatter)
- Air Velocity Rating: 0–3,000 feet per minute
- Voltage Options: 230V, 115V, or 24V AC/DC
- Alarm Current: 2–10A (selector-dependent)
- Standby Current: Maximum 32mA
- Wiring: 12–22 AWG solid or stranded copper wire
- Temperature Range: 32–140°F (0–60°C)
- Humidity Range: 0–85% non-condensing
- Dimensions: 6 inches diameter x 4 inches height
- Housing: White polycarbonate, HVAC-rated construction
Certifications
- UL Listed for commercial HVAC duct applications
- Complies with NFPA 72 duct detector requirements
