Apollo MS-RH/KA/P/A/T

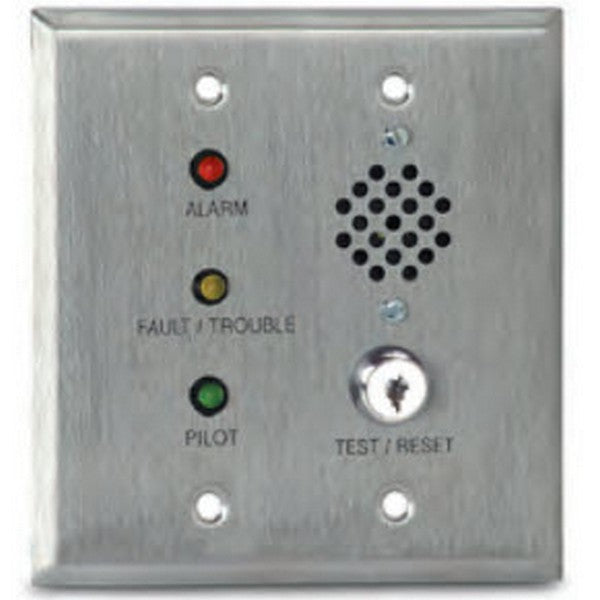

The Apollo MS-RH/KA/P/A/T is a remote alarm accessory for Apollo duct smoke detection systems, providing visual and audible indication of smoke alarm conditions along with remote test and reset functionality. Constructed of brushed stainless steel with key-operated controls, the device mounts on standard electrical backboxes and features red alarm LED, green pilot LED, yellow trouble LED, and 78 dBA audible alarm horn.

Key Features

• Remote alarm accessory for Apollo duct smoke detectors (SL, SM, RT, RWF, RWJ series)
• Visual indicators: Red alarm LED, green pilot LED, yellow trouble LED
• Audible alarm: 78 dBA at 10 feet for effective notification
• Key-operated test/reset switch for convenient system testing
• Brushed stainless steel construction for durable, professional appearance
• Mounts on standard single or double gang electrical backbox
• 24 VDC power operation with 15 mA alarm current, 20 mA horn current
• Operating temperature range: 32°F to 120°F (0°C to 49°C)

Technical Specifications

• Dimensions: 4.1" L × 4.1" W × 0.5" H
• Power Supply: 24 VDC
• Alarm Current: 15 mA
• Horn Current: 20 mA
• Audible Output: 78 dBA at 10 feet
• Visual Indicators: Tri-color LED (red/green/yellow)
• Control: Key-operated test/reset
• Mounting: Standard single or double gang backbox
• Material: Brushed stainless steel fascia
• Temperature: 32°F to 120°F (-0°C to 49°C)

Certifications

• Compatible with Apollo fire alarm systems
• UL-listed remote alarm accessory
