Apollo ORB-HT-41006-MAR
Apollo ORB-HT-41006-MAR
Only 5 left!

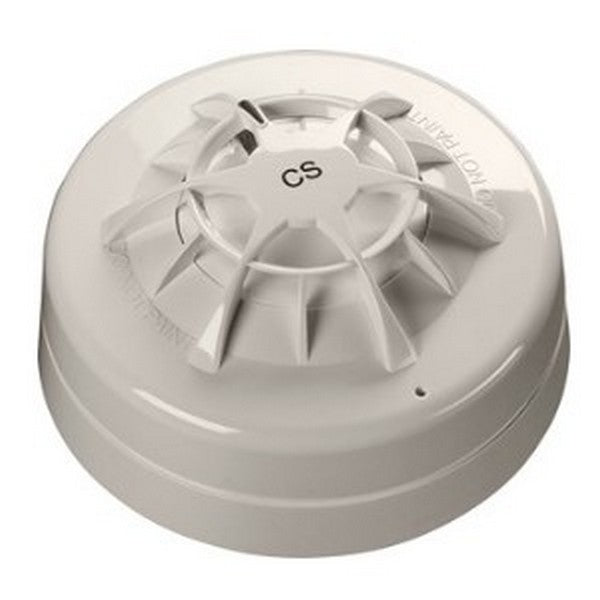

The Apollo ORB-HT-41006-MAR is an Orbis Marine heat detector (CS) that tracks ambient temperature through a single thermistor producing a voltage output proportional to the surrounding air, making it a better fit than a smoke detector for dirty or smoky shipboard spaces. A red flashing LED confirms it has powered up correctly, a yellow SensAlert LED flags a fault condition, and Apollo's FasTest feature lets a technician run a four-second functional test from the panel without needing heat or smoke.
Key Features
- Single-thermistor heat sensing suited to dusty or smoky marine compartments
- Red flashing LED confirms startup; yellow SensAlert LED reports faults
- FasTest four-second functional test capability
Technical Specifications
- Heat Classification: CS
- Voltage Range: 5-33V DC holding, 6V minimum active; Quiescent Current: 95μA @ 24V DC
- Sampling Frequency: Every 4 seconds; Alarm Reset Time: 1 second
- Dimensions: 97mm diameter x 36mm length; Weight: 70g; IP44
- Humidity Range: 0-98% RH, non-condensing
Certifications
- Marine classification approvals: Bureau Veritas, Lloyd's Register, DNV GL, CCS, ABS
- Marine Equipment Directive (MED) 2014/90/EU; UK Marine Equipment Regulations 2016
