Apollo ORB-HT-51156
Apollo ORB-HT-51156
Only 3 left!

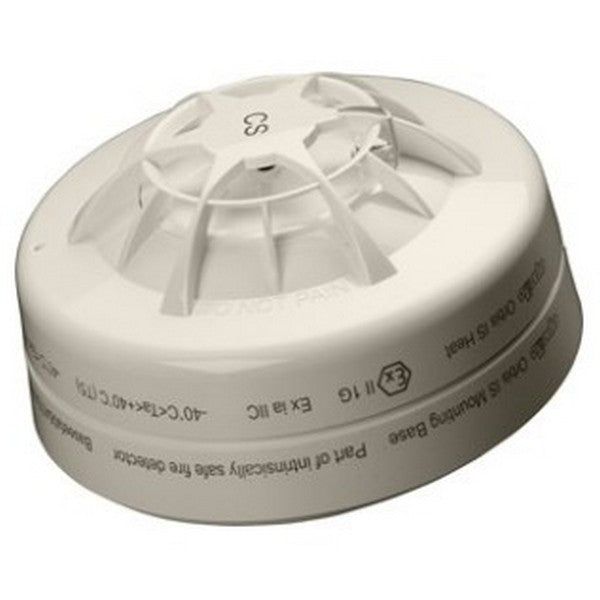

The Apollo ORB-HT-51156 is an intrinsically safe Orbis I.S. CS heat detector with a flashing LED, designed for hazardous and dusty environments where smoke detection would cause false alarms. It monitors ambient temperature using a single thermistor network that produces a voltage output proportional to external air temperature, sampling the reading every 2 seconds and driving its alarm output through a 325Ω series alarm load. The detector head fits Apollo's Orbis I.S. mounting base for use on Apollo XP95/Discovery-protocol fire alarm loops in offshore, refinery, and other Zone-rated hazardous installations.
Key Features
- Intrinsically safe design (Ex ia IIC) for hazardous-area installation
- CS heat classification, chevron-pattern sensing chamber
- Flashing LED indicator for local alarm confirmation
- Polycarbonate housing rated IP23D
Technical Specifications
- Quiescent Current: 80μA @ 24V DC
- Minimum Active Voltage: 12V; Holding Voltage: 5V minimum
- Alarm Reset Time: 1 second; Alarm Load: 325Ω in series, 1.0V drop
- Dimensions: 100mm diameter x 42mm; Weight: 70g
- Operating Humidity: 0-98% RH, non-condensing; Storage: -40°C to +70°C
Certifications
- IECEx, BASEEFA, DNV·GL, LR, BV, ABS and CCS hazardous-area approvals
- CPR and MED (Marine Equipment Directive) compliant; LPCB listed
