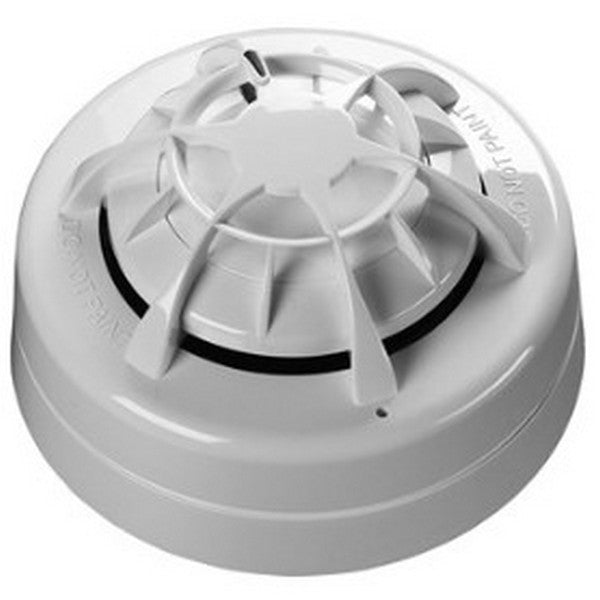

Apollo ORB-OH-43001-MAR

The Apollo ORB-OH-43001-MAR is an Orbis marine multisensor detector combining optical smoke and heat sensors for reliable fire detection across diverse vessel applications. The detector responds to both fast-burning flaming fires and slow-burning smouldering events through dual-sensor logic with certifications from DNV, Lloyd's Register, and DBI-MED for maritime equipment compliance under EU regulation.

Key Features

• Multisensor design: optical smoke + heat detection on single base
• Dual-sensor fire detection with intelligent alarm logic
• Responds to fast-burning flaming and slow-burning smouldering fires
• Wide voltage tolerance: 8.5V to 33V DC operation
• Sealed sensing chamber excludes dust and airborne contaminants
• Flashing LED option for visual alarm indication
• Extreme operating temperature range: -40°C to +70°C
• Integrated base mounting for direct installation on marine systems

Technical Specifications

• Detector Type: Conventional optical + heat multisensor
• Operating Voltage: 8.5V to 33V DC
• Optical Sensing: Light scatter photoelectric technology
• Heat Sensing: Thermistor-based temperature detection
• Operating Temperature: -40°C to +70°C
• Housing: Polycarbonate with marine-grade seal
• Weight: 70 grams
• Sensing Chamber: Sealed design against dust and contaminants
• Installation: Conventional base mounting (base sold separately)
• LED Indicator: Optional flashing LED in alarm state

Certifications

• DNV (Det Norske Veritas) marine approval
• Lloyd's Register (LR) marine classification
• DBI-MED (Dichtigkeitsbescheinigung und Inspektionsbüro) certification
• EU Marine Equipment Directive 2014/90/EU compliance
• EN 54-7:2000 smoke detector standard compliance
• OEA 4021:1999-06(EN) multisensor standard compliance
