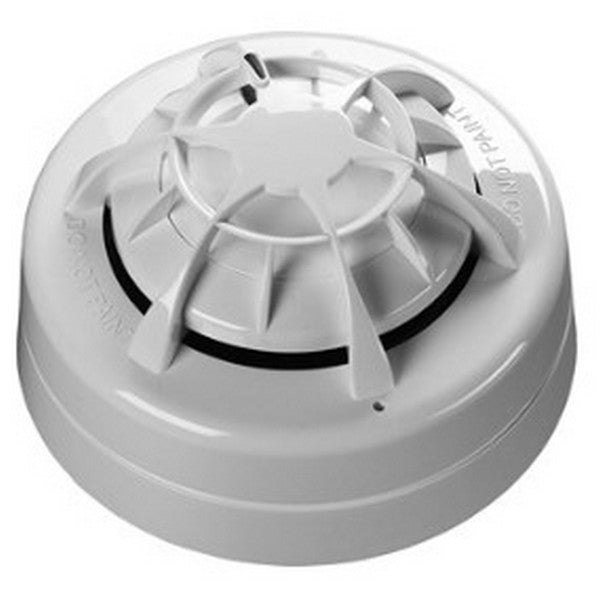

Apollo ORB-OH-43003-MAR
Apollo ORB-OH-43003-MAR
Only 2 left!
The Apollo ORB-OH-43003-MAR is an Orbis Marine multi-sensor detector that combines optical smoke detection with heat sensing in a single sealed chamber, giving it a fast response to flaming fires while cutting false alarms compared to a smoke-only sensor. The chevron-pattern chamber keeps dust and other airborne contaminants from reaching the optics, and the detector is built to the marine classification and Marine Equipment Directive standards required for shipboard and offshore installations.
Key Features
- Combined optical/heat multi-sensor detection in one chamber
- Responds to both fast-burning flaming fires and slower smoldering conditions
- Chevron chamber design excludes dust and airborne contaminants
- Optional flashing LED indicator; not available for the UK market
Technical Specifications
- Voltage Range: 5-33V DC; Quiescent Current: 95μA @ 24V DC
- Sampling Frequency: Every 4 seconds; Alarm Reset Time: 1 second; Alarm Load: 600Ω
- Dimensions: 97mm diameter x 42mm height; Weight: 80g; IP23D
- Operating/Storage Temperature: -40°C to +70°C; Humidity: 0-98% RH, non-condensing
Certifications
- Marine classification approvals: DNV GL, Lloyd's Register, Bureau Veritas, CCS, ABS
- Marine Equipment Directive (MED) Module B and D certificates; EMC and RoHS compliant
