Apollo ORB-OP-42003-MAR

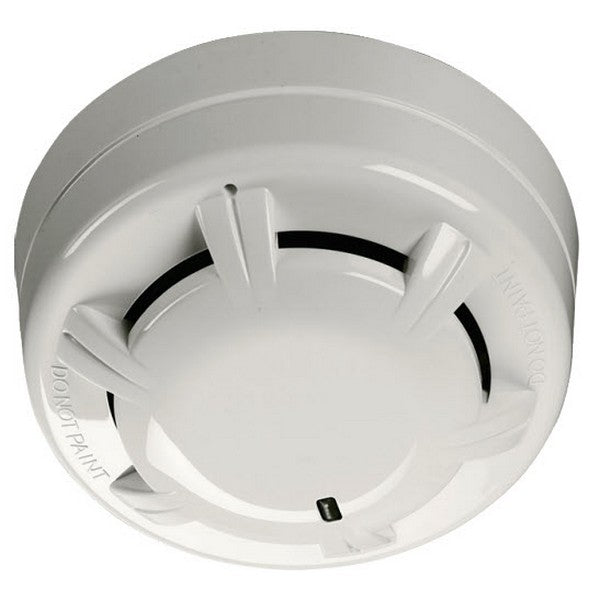

The Apollo ORB-OP-42003-MAR is an Orbis Marine optical smoke detector that uses photo-electric light-scattering sensing inside a chevron-shaped sampling chamber to detect fast-burning, flaming fires while resisting false alarms from dust and airborne contaminants. It includes a flashing LED status indicator and is built in Apollo's Orbis marine-rated housing for shipboard and offshore fire detection systems.

Key Features

• Photo-electric light-scattering detection using an infrared emitter, prism, and solid-state photo-diode
• Sealed sensing chamber keeps out dust and airborne contaminants without blocking smoke entry
• Samples the chamber every 4 seconds and stabilizes in under 20 seconds after power-up
• Flashing-LED status indicator variant of the Orbis marine detector line

Technical Specifications

• Operating voltage: 5-33V DC (minimum 6V to activate)
• Quiescent current: 95 microamps at 24V DC
• Operating/storage temperature: -40C to 70C; humidity 0-98% RH, non-condensing
• Housing: white polycarbonate, 97mm diameter x 31mm; IP23D ingress rating

Certifications

• Marine Equipment Directive 2014/90/EU and UK Marine Equipment Regulations 2016 approved
• Classed by DNV, Lloyd's Register, Bureau Veritas, ABS, China Classification Society, and Croatian Register of Shipping
• Compliant with EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU
