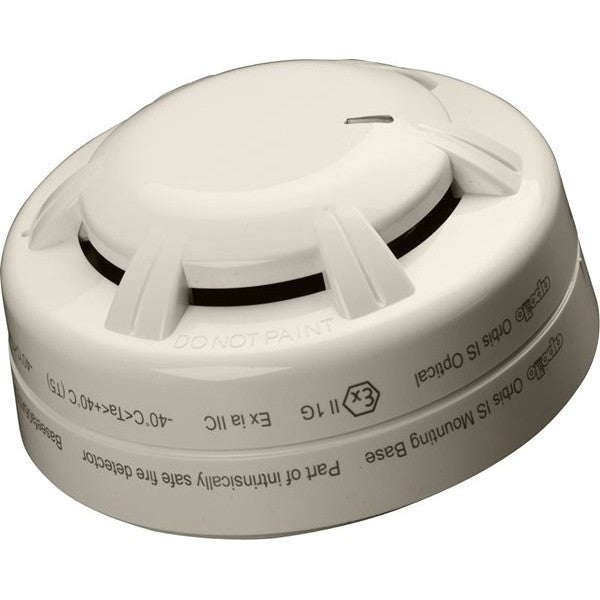

Apollo ORB-OP-52028APO

The Apollo ORB-OP-52028APO is an Orbis intrinsically safe optical smoke detector with flashing LED designed for hazardous area applications including escape routes, dusty environments, offshore platforms, and refineries. The detector employs light scatter optical sensing technology optimized for slow-burning or smouldering fire detection with power-up time under 20 seconds and false alarm reduction algorithms.

Key Features

• Intrinsically safe (I.S.) optical smoke detector with flashing LED indication
• Light scatter principle technology sensitive to black smoke
• Optimized for smouldering and slow-burning fire detection
• Extreme operating temperature range: -40°C to +70°C
• Rapid power-up: maximum <20 seconds to full operational sensitivity
• False alarm reduction with integrated algorithms
• Suitable for dusty environments and hazardous area installations

Technical Specifications

• Detection Technology: Optical light scatter (photoelectric)
• Certification: Intrinsically safe for hazardous areas
• Operating Voltage: 24 VDC
• Sensor Configuration: Surface-mount infrared emitter with prism and photo-diode amplifier
• Operating Temperature: -40°C to +70°C
• Weight: 0.18 lbs (approximately 81g)
• LED Indicator: Flashing red LED in alarm state
• Housing: Polycarbonate case rated for harsh environments

Certifications

• Intrinsically Safe (I.S.) approval for hazardous area use
• Orbis detector platform certification
