Condition: New

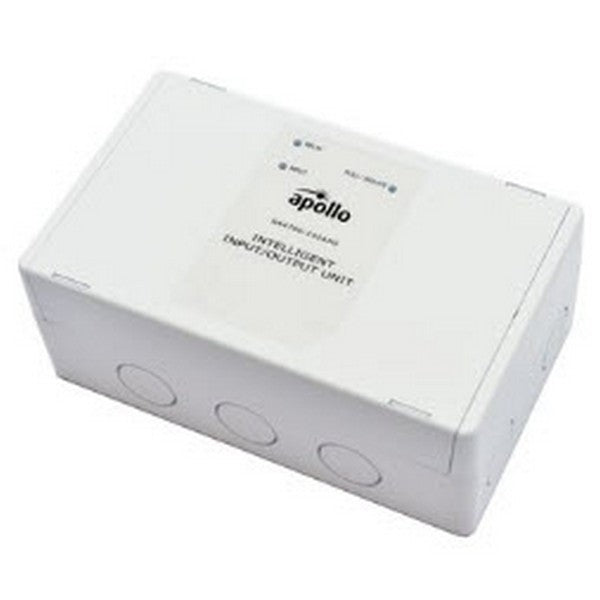

Apollo SA4700-102APO
Apollo SA4700-102APO
Module Intelligent Input/Output Unit
Regular price
$86.99
Sale price
$86.99
Regular price
Shipping calculated at checkout.
Only 2 left!
The Apollo SA4700-102APO is an intelligent input/output module that monitors single-pole, volt-free contact inputs and drives a relay output on Apollo XP95, Discovery, and CoreProtocol addressable loops. It's built for tasks like tripping a fan shutdown relay or reporting a remote switch back to the panel, with a wiring layout designed for faster field termination and semi-flush or surface mounting in its own enclosure.
Key Features
- Monitors a volt-free contact input and controls a relay output on the same module
- Complies with BS 7273-4 failsafe interface requirements
- Ergonomic wiring layout for faster installation
- Semi-flush or surface mounting; compatible with XP95, Discovery, and CoreProtocol
Technical Specifications
- Supply Voltage: 17-35V DC; Protocol Voltage: 5-13V peak-to-peak
- Quiescent Current: 500μA @ 24V DC; Surge Current: 0.9mA
- Relay Contact Rating: 1A at 30V AC
- Dimensions: 150mm W x 90mm D x 60mm L; Weight: 244g; IP52
Certifications
- EN 54-17 and EN 54-18 certified
- Additional FG, LPCB, SBSC, BOSEC, VdS, and CPR approvals
