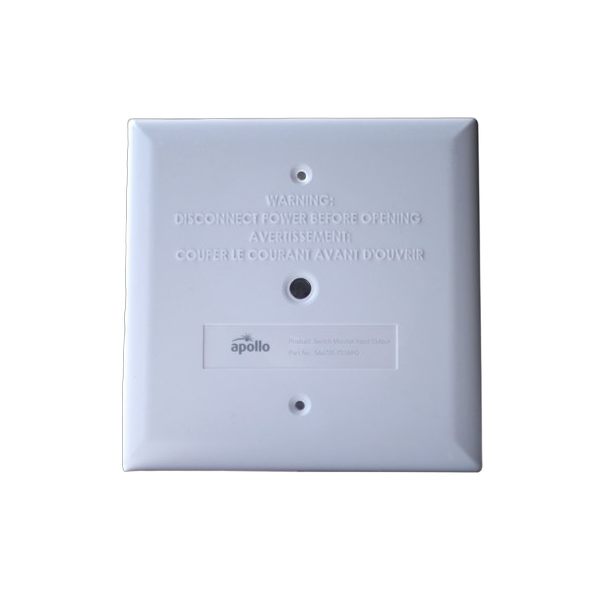

Apollo SA4705-703APO

The Apollo SA4705-703APO is a Soteria UL switch monitor input/output module that watches a supervised input circuit wired to a remote switch and drives a 240V-rated volt-free relay output in response. Power for the module comes from the addressable loop itself, and a built-in short-circuit isolator keeps a wiring fault on its input from taking down the rest of the loop.

Key Features

• Loop-powered switch monitor with a 240V rated volt-free relay output
• Built-in short-circuit isolator protects the rest of the loop
• Tri-colored LEDs report module and input status
• Ground fault detection on the monitored input circuit

Technical Specifications

• Input: Supervised, monitored circuit for remote switch connection
• Output: 240V AC rated volt-free relay contact
• Power: Loop-powered, no separate supply required

Certifications

• UL and ULC listed
• FM, SII, and CSFM approved
