Apollo SA5800-450APO
Apollo SA5800-450APO
In stock!

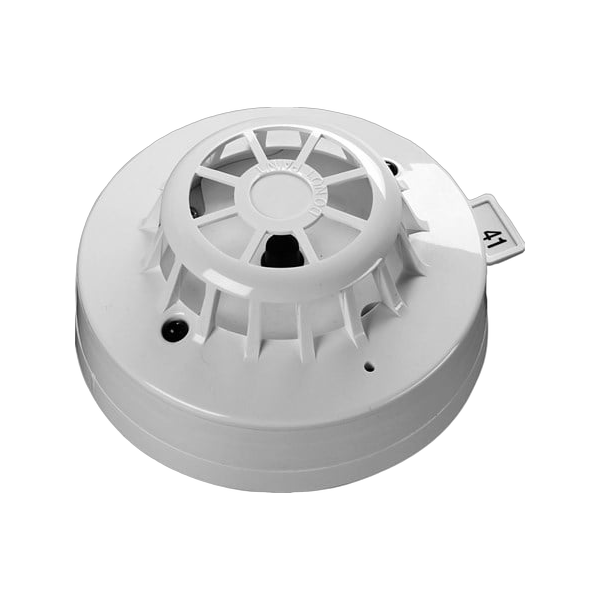

The Apollo SA5800-450APO is a Discovery/Soteria UL heat detector that monitors ambient temperature with a single thermistor, producing a voltage output proportional to the surrounding air temperature and reporting an alarm through Apollo's addressable protocol. It's built for the Soteria UL device range but stays backward compatible with legacy Discovery UL installations, so it can go into an existing Discovery UL system without a base change.
Key Features
- Single-thermistor electronic temperature sensing
- Backward compatible with legacy Discovery UL systems
- Compatible with Apollo Discovery and CoreProtocol addressable loops
Technical Specifications
- Supply Voltage: 17-28V DC; Protocol Voltage: 5-9V peak-to-peak
- Quiescent Current: 500μA; Surge Current: 1mA
- Dimensions: 100mm diameter x 42mm depth; Weight: 104g; Polycarbonate housing
- Operating Temperature: 0°C to 66°C; Humidity: 0-95% RH, non-condensing
Certifications
- UL and ULC listed
- FM, SII, and CSFM approved
