Condition: New

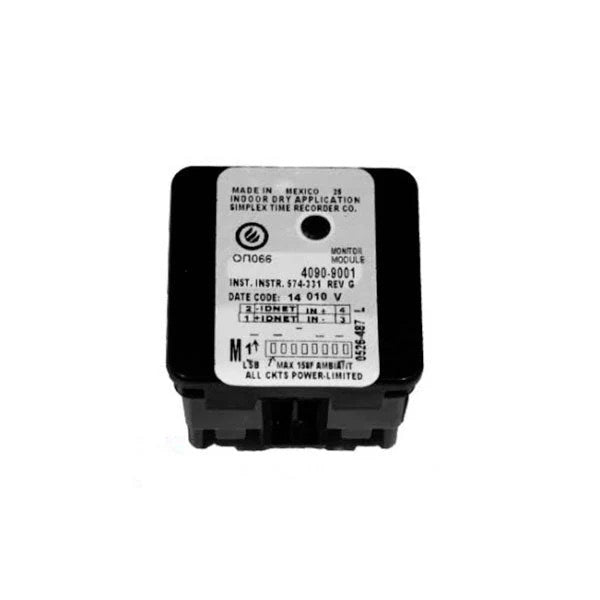

Autocall A4090-9001
Autocall A4090-9001
Module IAM Supervised Addressable IDNet Device
Regular price
$66.99
Sale price
$66.99
Regular price
Shipping calculated at checkout.
Only 6 left!
The Autocall A4090-9001 is a supervised Individual Addressable Module (IAM) housed in a thermoplastic enclosure, used to monitor normally open dry contacts and end-of-line resistor wiring at a specific point on an IDNet fire alarm system.
Key Features
- Single-point addressable supervision for initiating devices or contact circuits
- Powered directly over the IDNet communications loop -- no separate 24 VDC feed required
- Visible LED for communications status
- Compact enclosure mounts in a standard single-gang electrical box
Technical Specifications
- Protocol: IDNet, one address per IAM
- Wiring: Screw terminals, 18 to 14 AWG
- Contact Distance: Up to 500 ft without protectors, up to 400 ft with A2081-9044 overvoltage protectors
- Operating Range: 32°F to 158°F, indoor use
Certifications
- UL Listed addressable IDNet monitor module
