Autocall SSU00685
Autocall SSU00685
Out of stock; call for lead time

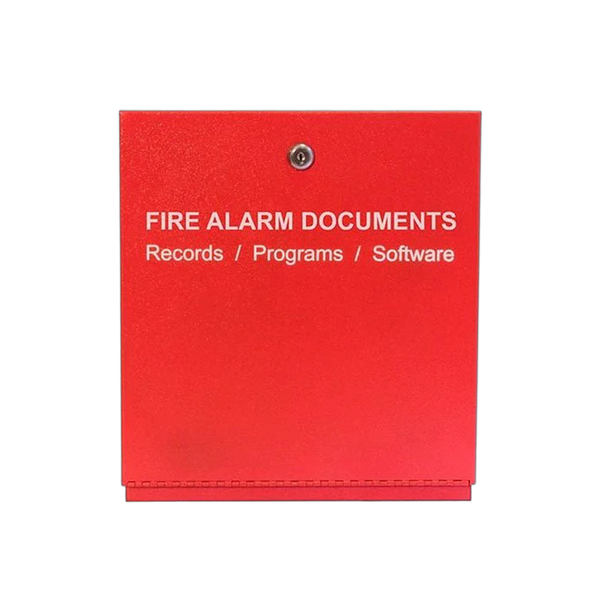

The Space Age Electronics SSU00685 is a UL Listed Fire Alarm Documents (FAD) storage box built from 18-gauge cold-rolled steel with a red powder-coat finish, sized to hold as-built prints, panel programming records, and system manuals at the protected premises. The cabinet cover is permanently screened "FIRE ALARM DOCUMENTS" in 1" white indelible lettering, and an integrated 8GB USB flash drive with a slide tab lets a technician choose between USB-C or Micro-USB to upload or download programming files and records directly at the panel.
Key Features
- 18-gauge cold-rolled steel construction with red powder-coat finish
- Built-in 8GB USB flash memory with USB-C/Micro-USB slide-tab connector
- Lockable 3/4" barrel lock with a liftaway hinge on the access door
- 2 interior key ring holders and a mounting spot for a contact business card
Technical Specifications
- Dimensions: 12" x 13.25" x 3.13"
- Weight: 8 lb
- Mounting: 4-hole surface mount
- Interior capacity: standard 8.5" x 11" manuals and three-ring binders
Certifications
- UL Listed
