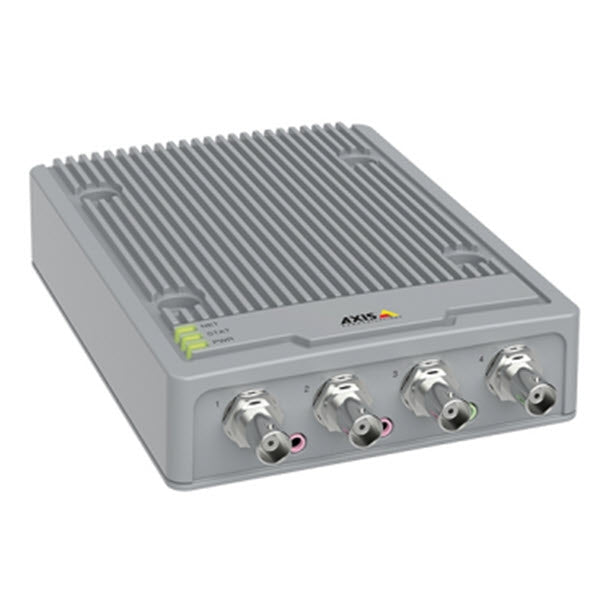

Axis Communications P7304

The Axis Communications P7304 is a full-featured four-channel video encoder that converts analog HD camera feeds to IP with advanced video compression and edge analytics. Supporting HD analog cameras up to 4K (TVI, CVI, and standard analog HD), it delivers up to 1080p Full HD resolution at 25/30 fps in all formats with individually configurable H.264, H.265, and Motion JPEG streams. Integrated Zipstream technology dramatically reduces bandwidth and storage requirements without compromising image quality, while Power over Ethernet (PoE) simplifies deployment with single-cable connectivity and power delivery.

Key Features

• Four-channel HD analog-to-IP video encoding with HD TVI, HD CVI, and analog HD support
• Up to 1080p Full HD resolution with 25/30 fps frame rate
• Multiple video compression options: H.264, H.265, and Motion JPEG per channel
• Zipstream bandwidth reduction technology for storage optimization
• Power over Ethernet (PoE) for simplified connectivity and power
• Edge storage via microSD card slot for continuous recording
• Intelligent analytics: motion detection, audio detection, tampering alarm
• PTZ camera control via RS485/422 connectors

Technical Specifications

• Video Input: Four analog HD channels (TVI, CVI, analog HD)
• Video Output: H.264, H.265, Motion JPEG (individually configurable)
• Maximum Resolution: 1080p Full HD
• Frame Rate: 25/30 fps all resolutions
• Network: 1 × RJ45 (PoE-powered)
• Storage: MicroSD card slot for edge storage
• Audio: Two-way audio support
• Security: Signed firmware, secure boot enabled

Certifications

• IP-based surveillance equipment with integrated analytics
