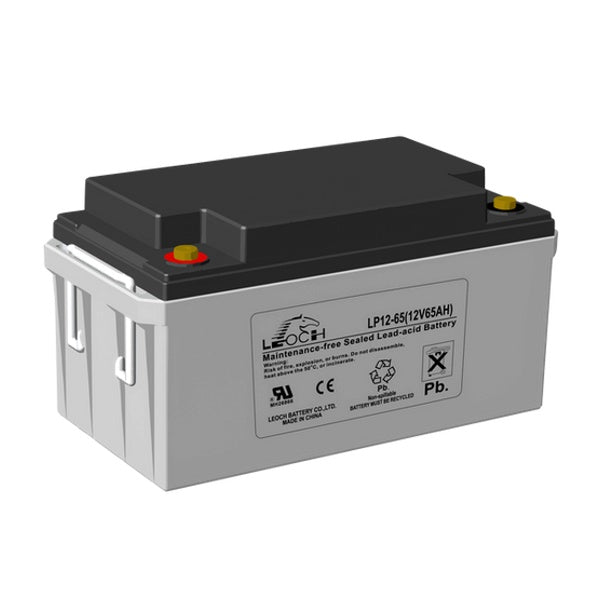

Batteries (Commodity) LP12-65

The LP12-65 is a 12-volt, 65-ampere-hour sealed lead-acid battery utilizing absorbed glass mat (AGM) valve-regulated technology, delivering reliable emergency backup power for fire alarm control panels, uninterruptible power supplies (UPS), and security system installations. Engineered with lead-calcium alloy construction and sealed design requiring no maintenance or watering, this battery provides consistent performance over a 12-year design life with minimal self-discharge (≤3% per month at 25°C) while supporting maximum discharge currents of 975A over 5-second intervals. The M6 terminal configuration enables secure, standardized connections to industry-standard battery leads and charging equipment.

Key Features

• 12V 65Ah sealed lead-acid battery (AGM technology)
• Valve-regulated design with no maintenance or watering required
• Lead-calcium alloy construction for reliable performance
• 12-year design life with low self-discharge rate (≤3% per month)
• High discharge capacity: 975A maximum (5-second burst)
• M6 terminal inserts for standard industry connections
• Suitable for UPS, fire alarm, security, and communication systems
• Environmentally safe sealed design with no acid spillage risk

Technical Specifications

• Nominal Voltage: 12 VDC
• Nominal Capacity: 65 Ah at 20-hour discharge rate
• Dimensions: 350 mm (L) x 167 mm (W) x 179 mm (H) [13.8 x 6.57 x 7.05 inches]
• Weight: 17.5 kg (38.6 lbs)
• Maximum Discharge Current: 975A (5-second rating)
• Internal Resistance: Approximately 8.5 mΩ
• Self Discharge: ≤3% per month at 25°C
• Terminal Type: M6 insert terminals
• Operating Temperature: Discharge -15 to 50°C; Charging 0 to 40°C; Storage -15 to 40°C

Certifications

• Valve-regulated, sealed lead-acid (VRLA) UPS battery standard
• Compatible with fire alarm and security system backup requirements
