Bosch B10

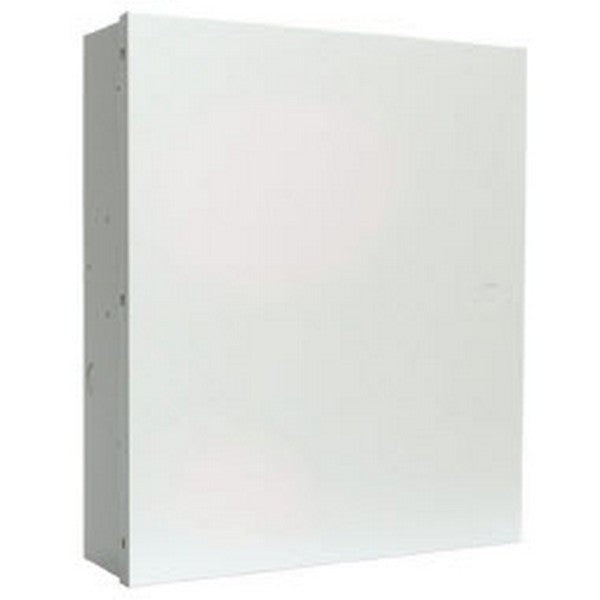

The Bosch B10 is a medium-sized steel control panel enclosure providing a secure, compact housing for fire alarm system components and modules in commercial and institutional installations. Constructed from 1.0 mm (20-gauge) cold-rolled steel with a white semi-gloss finish, this enclosure is designed to mount and protect control panels, expansion modules, and associated fire alarm equipment while maintaining a clean, professional appearance in lobby, office, and facility areas. The B10 includes strategically positioned standoff locations for easy module mounting, battery compartment access for emergency backup power, and provisions for optional locks and tamper switches to ensure authorized access only.

Key Features

• Medium-sized enclosure for compact fire alarm system housing
• 1.0 mm (20-gauge) cold-rolled steel construction for durability and security
• White semi-gloss finish for professional appearance in commercial spaces
• Standoff locations for easy installation and support of control panel modules
• Dedicated battery compartment with easy access for emergency backup power
• Compatible with optional lock and tamper switch accessories for enhanced security

Technical Specifications

• Dimensions: 35.6 cm (14.0 in) height x 31.8 cm (12.5 in) width x 7.6 cm (3.0 in) depth
• Material: Cold-rolled steel, 1.0 mm (20 gauge) thickness
• Finish: White semi-gloss coating
• Construction: Welded steel frame with mounting standoffs
• Accessories: Optional lock and tamper switch compatible

Certifications

• Compatible with Bosch fire alarm control panels and modules
• UL-compliant enclosure for fire safety system installations
