Condition: New
Bosch B299
Bosch B299
Module Popex For B9512G And B8512G
Regular price
$105.99
Sale price
$105.99
Regular price
Shipping calculated at checkout.
Only 1 left!

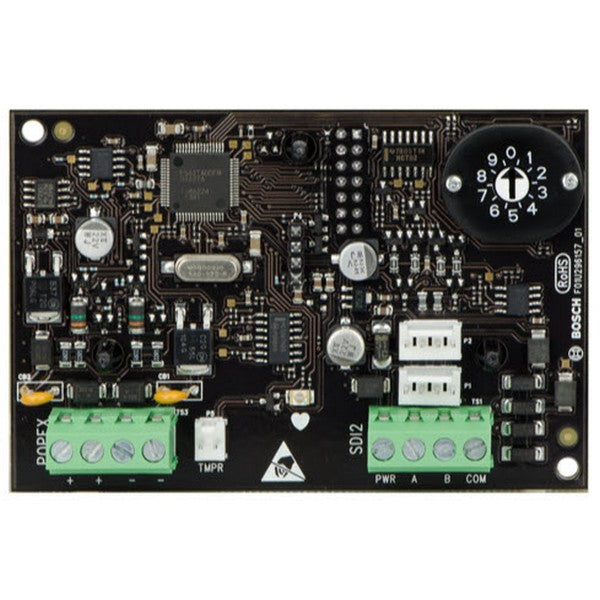

The Bosch B299 expansion module supports up to 100 addressable initiating devices with circuit integrity supervision. The module connects to the control panel via the SDI2 bus, extending device capacity with two-pair terminal connections and flexible wiring configuration.
Key Features
- Supports 100 addressable initiating devices
- SDI2 bus connectivity (single expansion loop)
- Circuit integrity supervision
- Compact design (2.9" x 5.0" x 0.6")
- Two-pair terminal connection
- Installation in control panel or adjacent approved enclosure
Technical Specifications
- Device Capacity: Up to 100 addressable devices
- Input Voltage: 12 VDC
- Alarm Current: 35 mA + total device current
- Dimensions: 2.9" x 5.0" x 0.6"
- Terminal Wire Size: 12 AWG to 22 AWG (2.0-0.65 mm)
- Max Unshielded Distance: 200 ft (22 AWG), 500 ft (18 AWG)
- Max POPIT Loop: 1800 ft (22 AWG), 4497 ft (18 AWG)
Certifications
- UL Listed expansion module
- Bosch system compatible
- ANSI/UL 864 compliant
